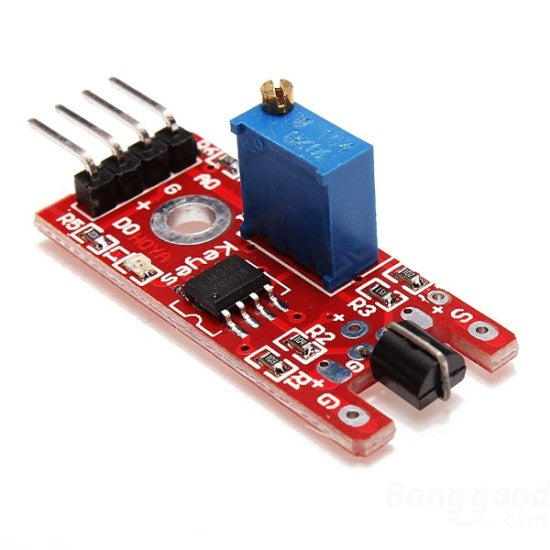

KY-036 Metal Touch Sensor Module

KY-036 Metal Touch Sensor Module

Regular price ₹ 44.00
Regular price ₹ 50.00 Sale price ₹ 44.00
Sold Out
Tax included. Shipping calculated at checkout.
Description In industry the exact position of the metal tool in CNC or Lathe machines or the robotic arms in automated systems is very important and essential to ensure your...
20 people are viewing this right now

AvailabilityIn stock

SKU: ATC-4756
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Touch Switch
View full product details

Description

In industry the exact position of the metal tool in CNC or Lathe machines or the robotic arms in automated systems is very important and essential to ensure your program is working correctly. Also counting the number of parts on a production belt is necessary to keep the data logged. This Ky-036 Metal Touch Sensor Module is a low cost solution of the above mentioned problems. It has a LM393 Comparator IC onboard which will provide Digital Output to be connected to GPIO Pins to your microcontroller. It also has resistive potentiometer to change the sensitivity of the output to touch. It also has M2 sized bolt holes for easy installation.

Specifications

  • Main chip :- LM393
  • Supply voltage :- 5VDC
  • No of channels :- signal output
  • Type of Sensor :- Human Body Touch Sensor
  • Low-level output signal used for human body touch sensor alarm
  • Adjustable sensitivity :- Yes
  • Pin Connector to board :- 4 Pins
  • PCB Color :- Red
  • Length :- 43mm
  • Width :- 16mm
  • Height :- 15mm
  • Weight :- 2 gm

Product Description

KY-036 Metal Touch Sensor Module Pinout

As this is a 5V Module, You need to connect VCC Pin to 5V Supply and You can take the Digital Output from DO Pin and connect it to any GPIO Pin on your controller. The module will give output High when touch is detected and Low otherwise.

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
