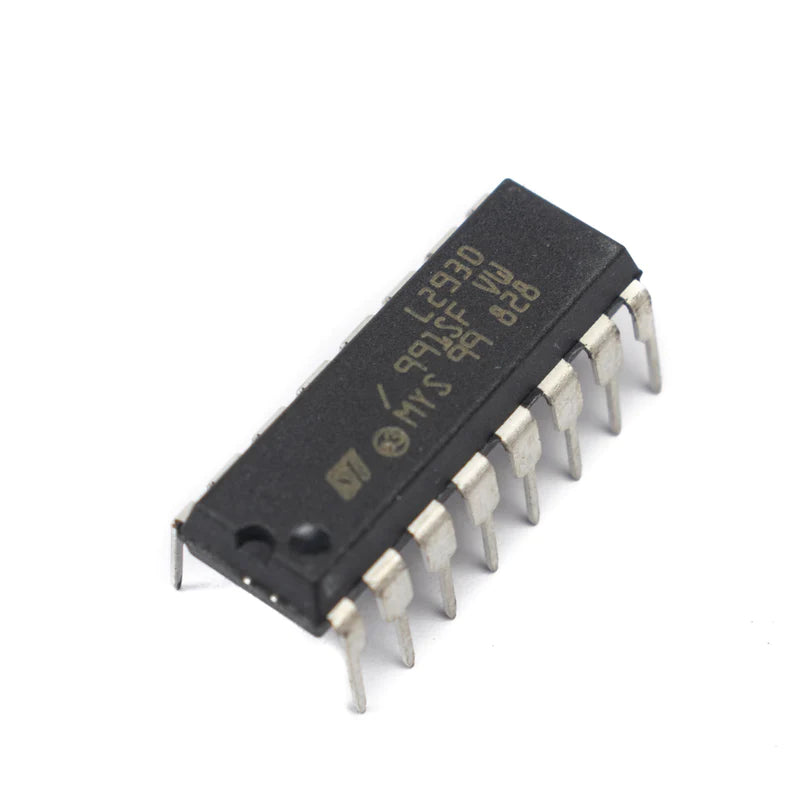

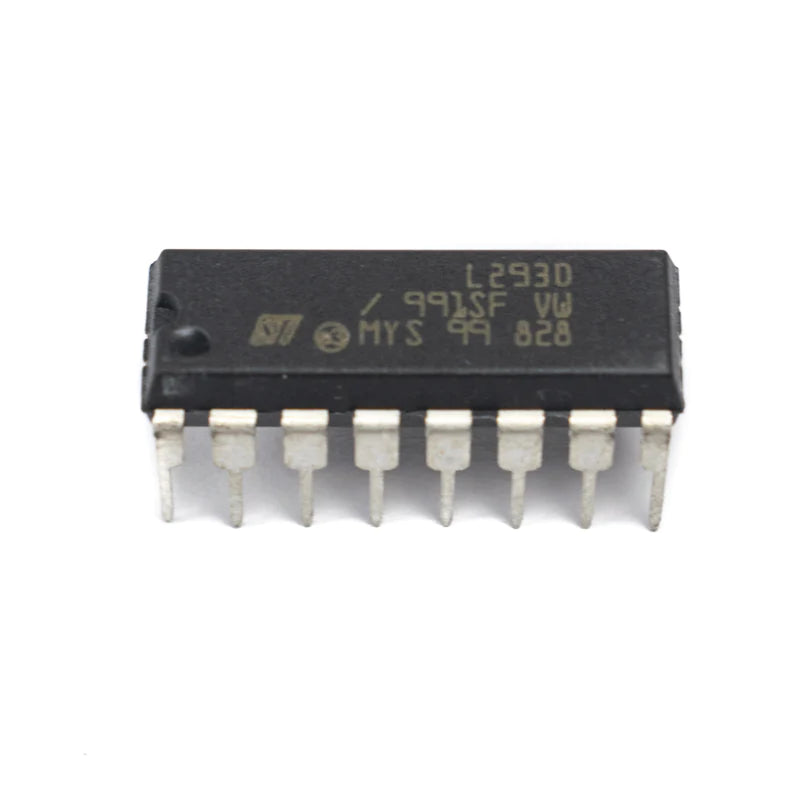

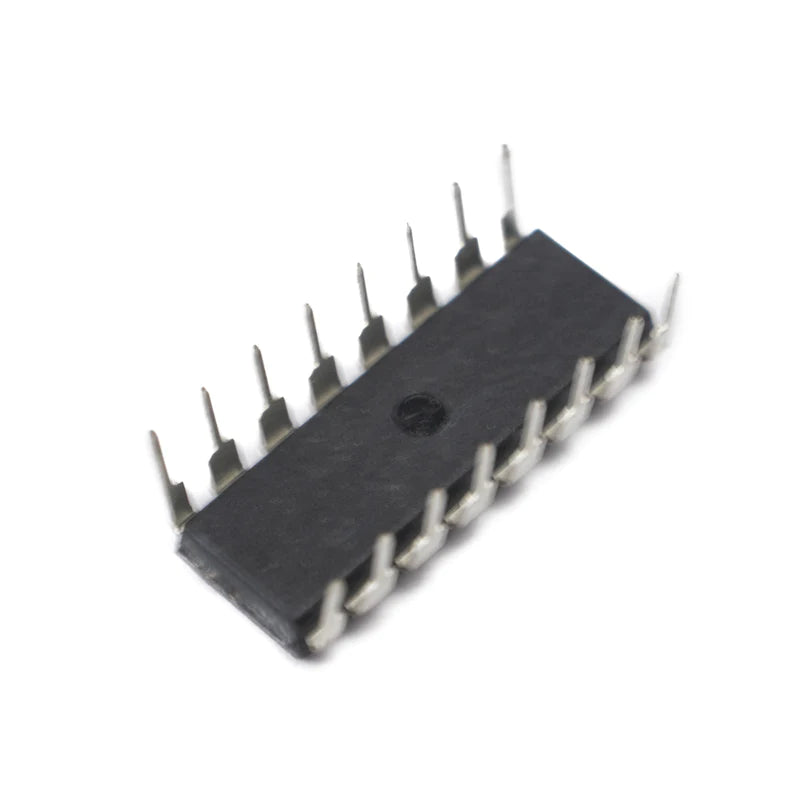

L293d Motor Driver IC

L293d Motor Driver IC

₹ 0.00
₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description L293D is a typical Motor driver that allows DC motors to drive in either direction. L293D is a 16-pin IC that can control a set of two DC motors simultaneously...
22 people are viewing this right now

Availability: In stock

SKU: ATC-4217
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Motor Driver
View full product details

Description

L293D is a typical Motor driver that allows DC motors to drive in either direction. L293D is a 16-pin IC that can control a set of two DC motors simultaneously in any direction.

Features

  • It can be used to run Two DC motors with the same IC.
  • Speed and Direction control is possible
  • In this, automatic thermal shutdown is available

Applications

  • It is used to drive high current Motors using Digital Circuits
  • It can be used to drive Stepper motors
  • The high current LEDs can be driven by this
  • Used in the relay Driver module
SPECIFICATION
Part Number L293d
Motor Voltage (VCC2) 4.5 V to 36 V
 Maximum peak motor current 1.2 A
Maximum continuous motor current 600 mA
Supply voltage to VCC1 4.5 V to 7 V
Transition time 300 nS
