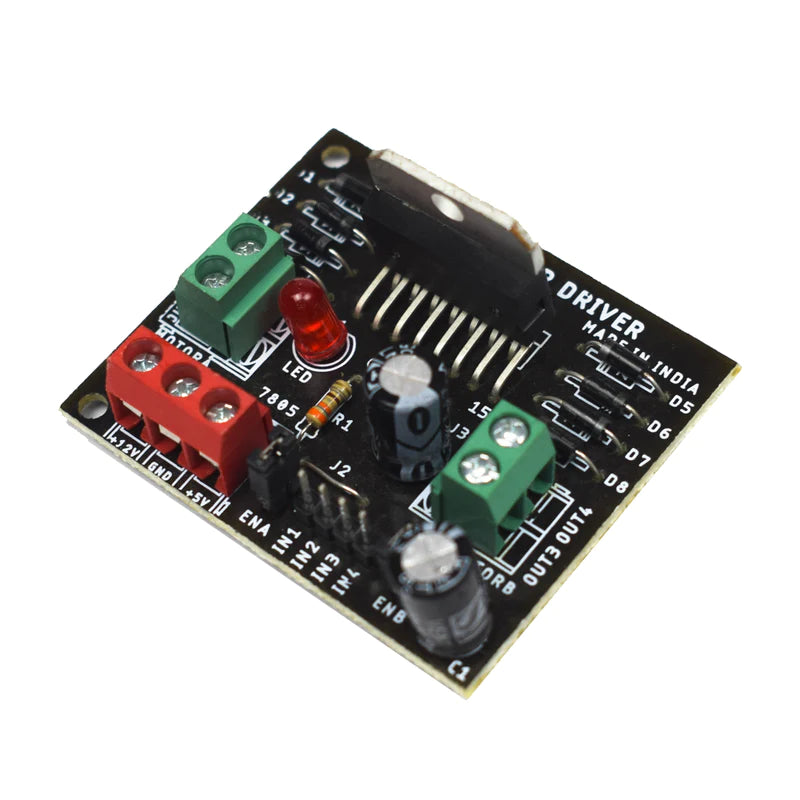

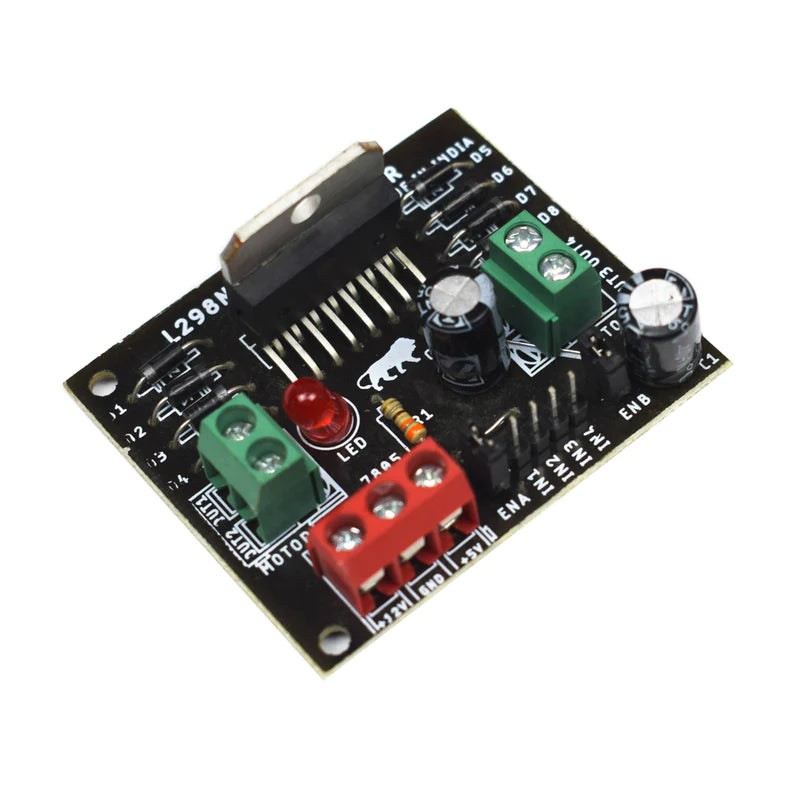

L298N Motor Driver Module (Made in India)

L298N Motor Driver Module (Made in India)

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description This is an L298N Motor Driver Controller Module Dual H-Bridge Motor Driver. The L298N Motor Driver Module is a dual full-bridge driver with high voltage and current. It accepts TTL logic-level...
29 people are viewing this right now

AvailabilityIn stock

SKU: ATC-4195
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Motor Driver
View full product details

Description

This is an L298N Motor Driver Controller Module Dual H-Bridge Motor Driver. The L298N Motor Driver Module is a dual full-bridge driver with high voltage and current. It accepts TTL logic-level inductive loads such as solenoids, relays, DC motors, and so on. This module controls two DC motors in any direction and speed at the same time. There are two enable inputs, which independently enable or disable the device based on the input signals. This Motor Driver module consists of an L298N Motor Driver IC, AMS1117 Voltage Regulator, resistors, capacitor, Power LED, and jumper in an integrated circuit.

Features:-

  • The high-power motor driver is perfect for driving DC motor and stepper motor.
  • Can control up to 4 DC motors and 2 DC motors with Directions and speed control.
  • L298 contains an H-Bridge circuit which can drive a current in either polarity and be controlled by Pulse Width Modulation (PWM)
  • Ideal for robotic applications and well-suited for connection to a microcontroller requiring just a couple of control lines per motor
  • Interfaced: simple manual switches, TTL logic gates, relays...
  • Motor & Drivers | Module | Motor Driver Module | Robotics
SPECIFICATIONS:
Product
L298N Motor Driver Module
Type
Dual H-Bridge Motor Driver
Operated IC L298N
No of Output 04
No. of Control Motor
02
Max Current 2A
Drive Voltage 5V~30V
Board Dimension(L*W*D)
45 X 524(mm)
Make Made in India
