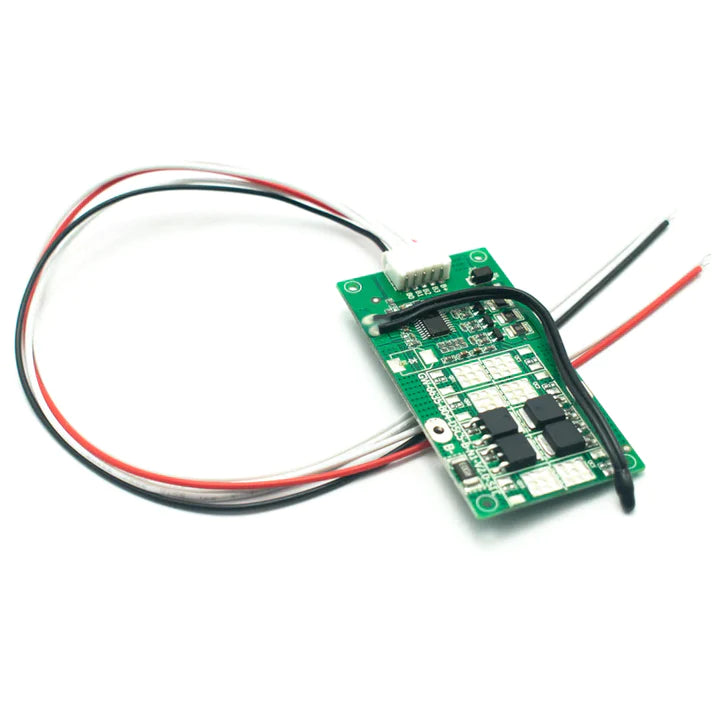

LiFePO4 4S 12.8V 10A Battery Management System

LiFePO4 4S 12.8V 10A Battery Management System

Regular price ₹ 170.00
Regular price ₹ 270.00 Sale price ₹ 170.00
Sold Out
Tax included. Shipping calculated at checkout.
Description :- This is a Lithium battery protection board, often known as a battery management system, for LiFePO4 batteries. The board's design is lightweight, making it simple to store and...
16 people are viewing this right now

AvailabilityIn stock

SKU: ATC-2562
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Battery BMS
View full product details

Description :-

This is a Lithium battery protection board, often known as a battery management system, for LiFePO4 batteries. The board's design is lightweight, making it simple to store and move. Overcharging and over-discharging protection, as well as short circuit and overcurrent protection, are all included on the board. This board may also be used to charge lithium batteries, as long as they are rechargeable. We can construct a battery pack with a voltage rating of up to 15V DC by combining 4 LiFePO4 electric cells with this BMS system.

SPECIFICATIONS ;-
  • Single overcharge detection voltage :- 3.7V±0.025V
  • Overcharge detection delay time :- 1.5s
  • Single overcharge release voltage :- 3.60V±0.04V
  • Cell balance detection voltage :- 3.5V±0.025V
  • Cell balance release voltage :- 3.50V±0.025V
  • Balance Current :- 70mA±10mA
  • Single over-discharge detection voltage :- 2.10V±0.08V
  • Over-discharge detection delay time :- 1.5s
  • Single over-discharge release voltage :- 2.40V±0.1V
  • Quiescent Current :- ≤40µA
  • Sustainable Discharge Current :- 10A
  • Sustainable Charging Current :- 10A
  • Stop Charging at Temp. :- >50°C
  • Stop Discharging at Temp. :- >70°C
  • Size :- 66x35x7mm

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
