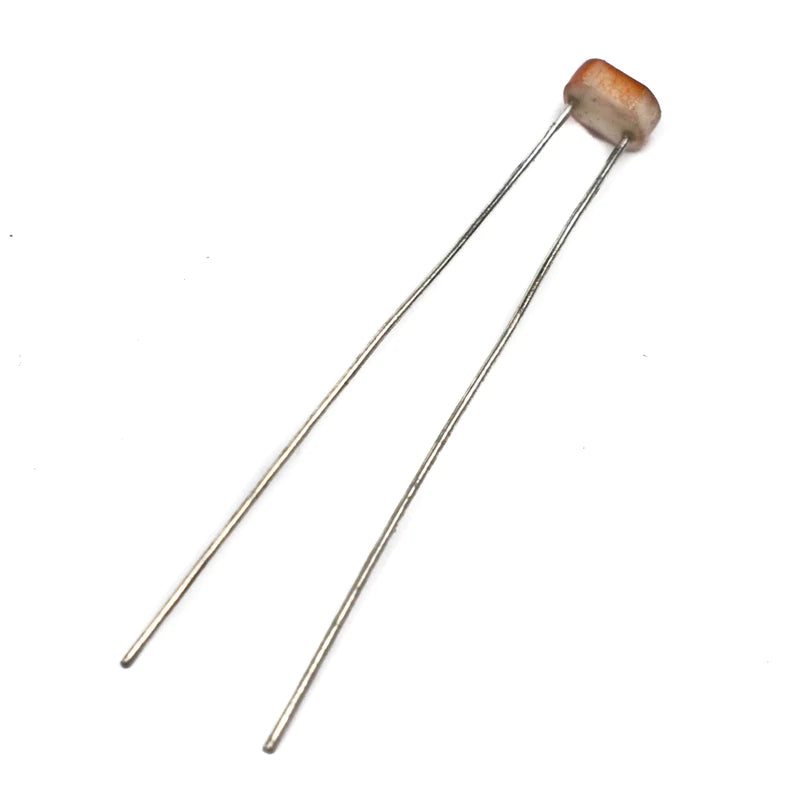

Light Dependent Resistor (LDR) 5mm

Light Dependent Resistor (LDR) 5mm

Description Light Dependent Resistor is a special type of resistor used for the detection of light. As it is a type of resistor hence it doesn’t have any polarity and...
23 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2299
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

Light Dependent Resistor is a special type of resistor used for the detection of light. As it is a type of resistor hence it doesn’t have any polarity and can be connected in any direction. LDR provides high resistance of several Mega Ohm in the absence of light but as the light starts striking on its surface the resistance offered by the LDR gradually decreases to a few Ohm. It is widely used in smart street lights, automatic headlight dimmers, automatic rearview mirrors, etc.

SPECIFICATIONS:
Diameter 5 mm
Max Voltage 150 volts
Max Power 100 mW
Light resistance(10 lux) 5-10 kohm
Dark Resistance >100 kohm
Operating Temperature -30° to 70° C
Number of Pins 2
