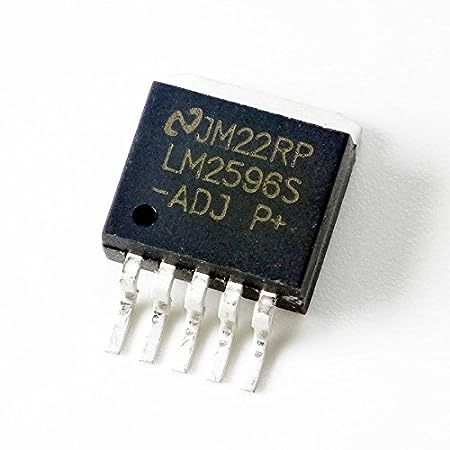

LM2596S-ADJ LM2596 TO-263 Voltage Regulator IC NEW

LM2596S-ADJ LM2596 TO-263 Voltage Regulator IC NEW

Regular price ₹ 25.76
Regular price ₹ 35.00 Sale price ₹ 25.76
Sold Out
Tax included. Shipping calculated at checkout.
Description The LM2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3-A load with excellent...
25 people are viewing this right now

AvailabilityLow stock: 70 left

SKU: ATC-4264
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

The LM2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.
Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, and a fixed-frequency oscillator.
The LM2596 series operates at a switching frequency of 150 kHz, thus allowing smaller-sized filter components than what would be required with lower frequency switching regulators.

Features/Specs:

  • Part No: LM2596S-Adj
  • Manufacturer: IK
  • Package: TO-263
  • 3.3-V, 5-V, 12-V, and adjustable output versions
  • Adjustable version output voltage range: 1.2V to 37V ±4% maximum over line and load conditions
  • 3-A output load current
  • Input voltage range up to 40 V
  • Requires only four external components
  • Excellent line and load regulation specifications
  • 150-kHz Fixed-frequency internal oscillator
  • TTL shutdown capability
  • Low power standby mode, IQ, typically 80 μA
  • High efficiency
  • Uses readily available standard inductors
  • Thermal shutdown and current-limit protection

Applications:

  • Appliances
  • Grid infrastructure
  • EPOS
  • Home theater
Brand/Manufacturer Generic
Country of Origin China
