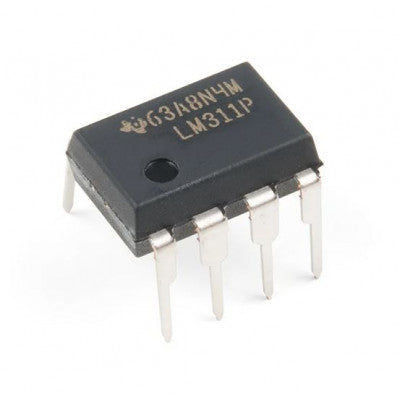

The LM311 devices are single high-speed voltage comparators. These devices are designed to operate from a wide range of power supply voltages, including ±15-V supplies for operational amplifiers and 5-V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits. These comparators are capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from system ground. The outputs can drive loads referenced to ground, VCC+ or VCC−. Offset balancing and strobe capabilities are available, and the outputs can be wire-OR connected. If the strobe is low, the output is in the off state, regardless of the differential input.
Features:-
• Fast Response Time: 165 ns
• Strobe Capability
• Maximum Input Bias Current: 300 nA
• Maximum Input Offset Current: 70 nA
• Can Operate From Single 5-V Supply
• Available in Q-Temp Automotive – High-Reliability Automotive Applications – Configuration Control and Print Support – Qualification to Automotive Standards
• On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
Specification:-
| Parameter | Min | Max | Unit |
| Supply Voltage | -18 | 18 | V |
| Differential input voltage | ±30 | V | |
| Input voltage | ±15 | V | |
| Voltage from emitter output to VCC– | 30 | V | |
| Voltage from collector output to VCC– | 40 | V |
