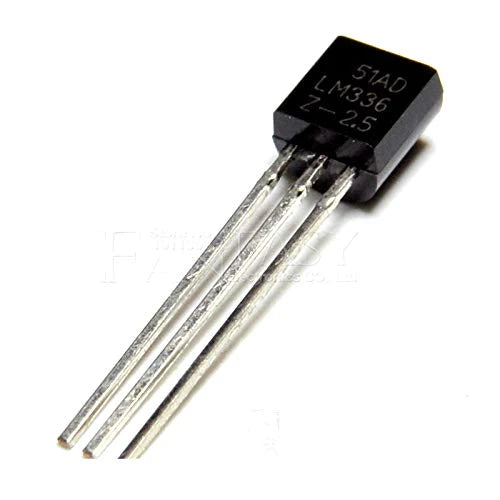

The LM336 integrated circuits are shunt regulators with a precision of 2.5V. The monolithic IC voltage reference operates as a 2.5V Zener with a low-temperature coefficient and a dynamic impedance of 0.2W. The LM336 has a third terminal that allows the reference voltage and temperature coefficient to be easily trimmed. The LM336-2.5 is a precision 2.5V low voltage reference that can be used in digital voltmeters, power supplies, or OP-AMP circuitry. The 2.5V makes obtaining a stable reference from low voltage supplies simple. Furthermore, because the LM336-2.5 are shunt regulators, they can be used as a positive or negative voltage reference.
Feature
| Model | LM336 |
| Brand | Fairchild |
| Mounting Type | Through Hole |
| Package | TO-92 |
| Operating Temperature Range | 0°C to +70°C |
| Pins/Terminals | 3 Terminals |
| Reverse Current | 15mA |
| Forward Current | 10mA |
| Storage Temperature Range | -60°C to +150°C |
