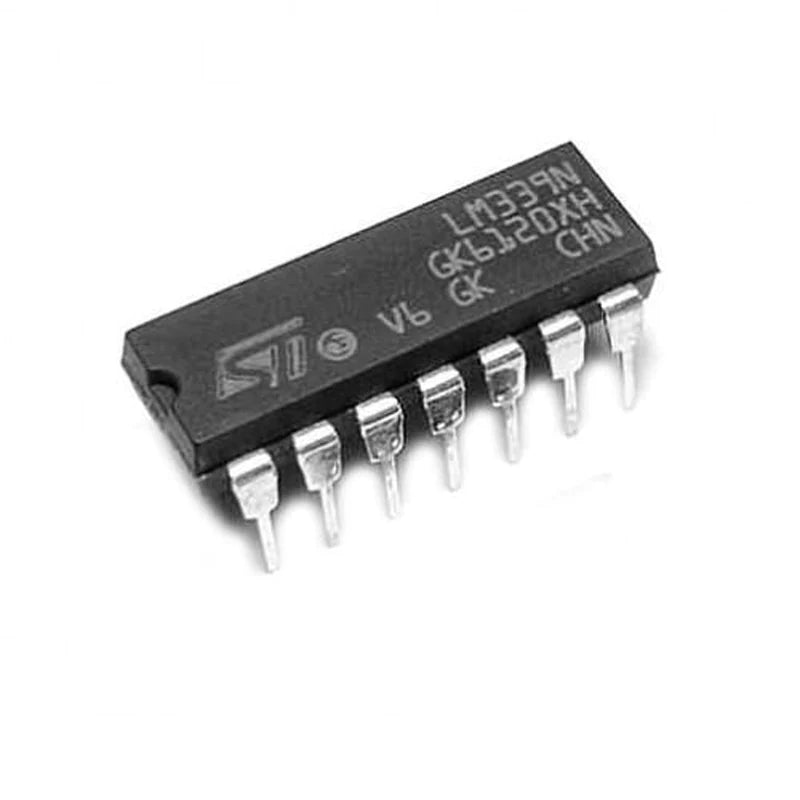

The LM339 consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2V to 36V, and VCC is at least 1.5 V more positive than the input common-mode voltage. The current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
| Model | LM339 |
| Type | Quad Comparator |
| Mounting Type | Through Hole |
| No of Pin | 14 |
| Package | DIP-14 |
