Description :-

The LM35 series are precision integrated-circuit temperature sensors, whose output voltage is linearly proportional to the Celsius (Centigrade) temperature. The LM35 thus has an advantage over linear temperature sensors calibrated in ° Kelvin, as the user is not required to subtract a large constant voltage from its output to obtain convenient Centigrade scaling. The LM35 does not require any external calibration or trimming to provide typical accuracies of ±¼°C at room temperature and ±¾°C over a full -55 to +150°C temperature range

Features :-

• Calibrated directly in ° Celsius (Centigrade)

• Linear + 10.0 mV/°C scale factor

• 0.5°C accuracy guaranteeable (at +25°C)

• Rated for full -55° to +150°C range

• Suitable for remote applications

• Low cost due to wafer-level trimming

• Operates from 4 to 30 volts

• Less than 60 µA current drain

• Low self-heating, 0.08°C in still air

• Nonlinearity only ±¼°C typical

• Low impedance output, 0.1 Ohm for 1 mA load

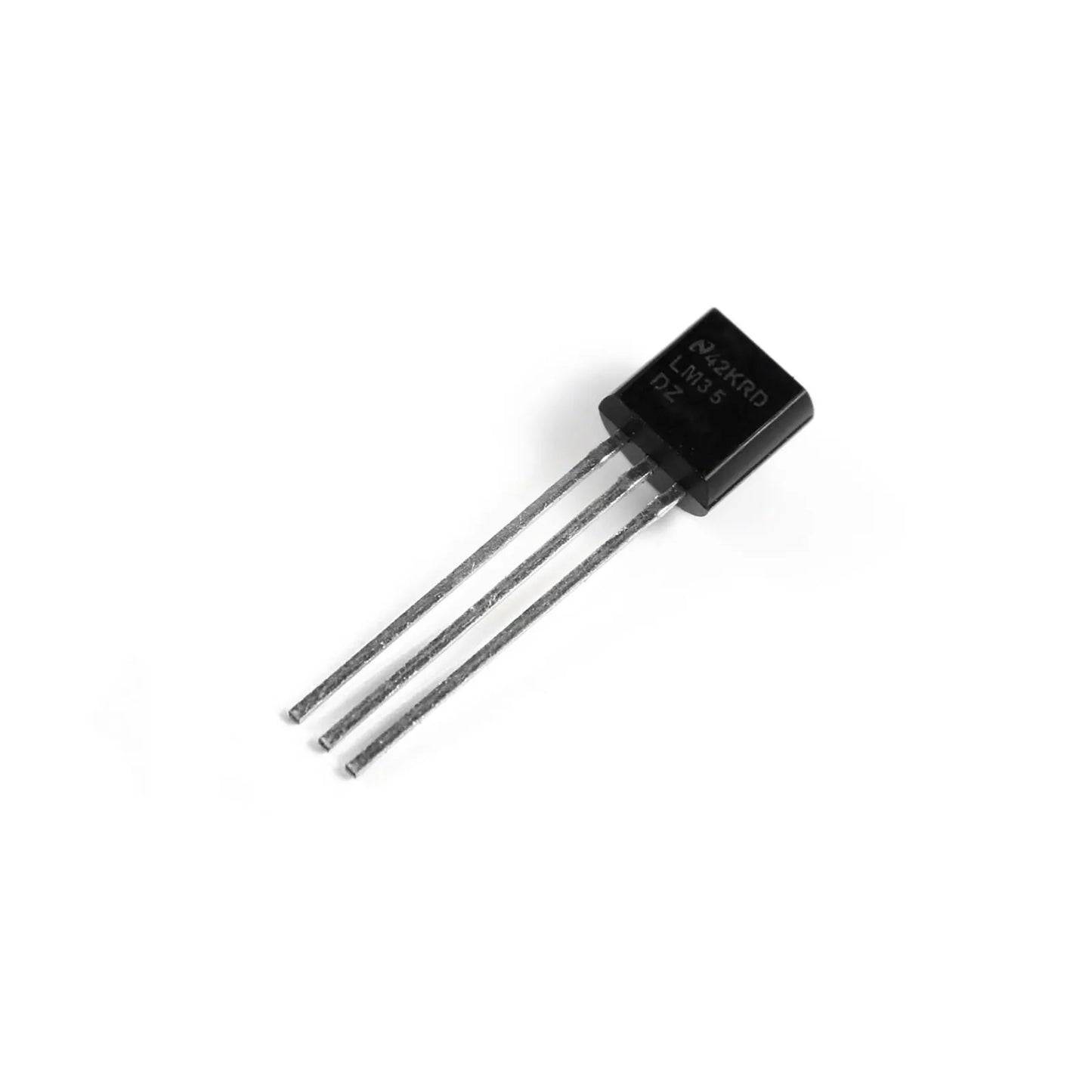

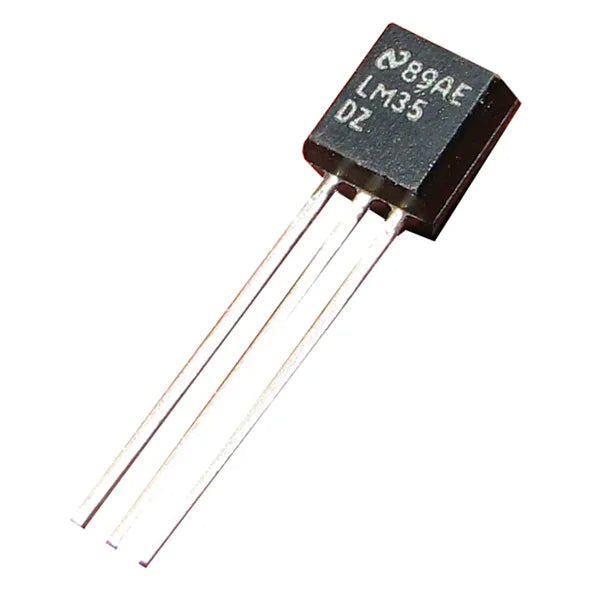

*Note: Product Image are shown for illustrative purposes only and may different from the actual product
