LM393 4 pin Sound detection Sensor module

LM393 4 pin Sound detection Sensor module

Regular price ₹ 35.00
Regular price ₹ 45.00 Sale price ₹ 35.00
Sold Out
Tax included. Shipping calculated at checkout.
Description : - LM393 Electret Microphone module uses LM393 as its main Op-Amp and is a single channel signal output sensor module. LM393 module has 3 pins which are Out,...
19 people are viewing this right now

AvailabilityIn stock

SKU: ATC-2710
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Audio Module Modules
View full product details

Description : -

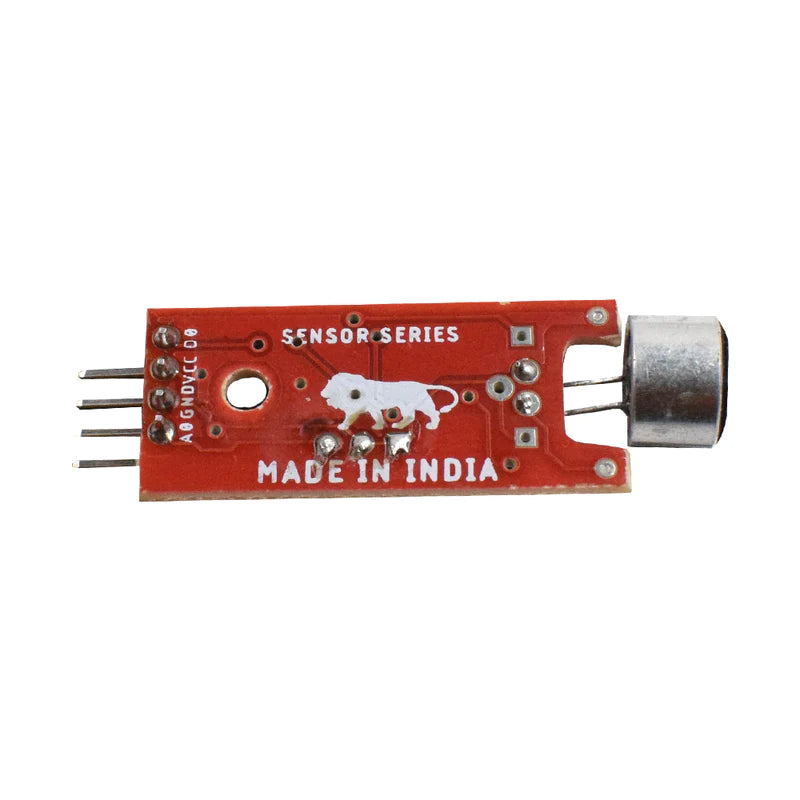

LM393 Electret Microphone module uses LM393 as its main Op-Amp and is a single channel signal output sensor module. LM393 module has 3 pins which are Out, GND and VCC. GND is connected to the ground and VCC is connected to the positive terminal of the power supply. Out is an Output pin. Out pin is high when it does not detect any sound. It goes low whenever it detects sound in its surroundings. Out pin is connected to the digital pin of the microcontroller board or directly to a 5V relay.

There is a potentiometer onboard to calibrate the digital output of the module. By potentiometer, a threshold volume can be set and when this threshold volume is exceeded status LED will light up and digital output will be low. The other LED glows when the device is powered.  This module can be used for Acoustic control light, give sound and light alarms working with Photosensitive sensors, sound control, sound detect and DIY projects like clap circuits.

Features :-

  • Uses an electret condenser microphone
  • LM393 Op-Amp is used
  • Signal Output indication
  • Both Analog and Digital Output are given
  • The comparator output is light
  • Electric condenser microphone
  • Low-level output signal used for sound control light

Specifications :-

  • Hearing aids
  • Telephones
  • Tape recorders and karaoke
  • Live and recorded audio engineering
  • Radio and television broadcasting
  • Speech recognition technology

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
