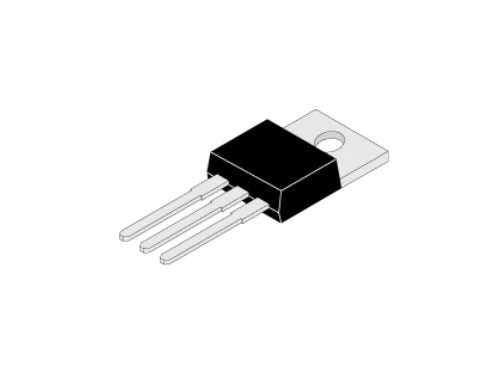

The L78 series of three-terminal positive regulators is available in TO-220, These regulators can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Features:
Block Diagram
 |
 |
| Product Type | Linear Voltage Regulator |
| Number of Outputs | 1 |
| Input Voltage Range | 14V to 30V |
| Maximum Output Current | 1.5A |
| Operating Temperature | 0°C to 125°C |
| Package | TO-220 |
| Output Voltage | 12V |
