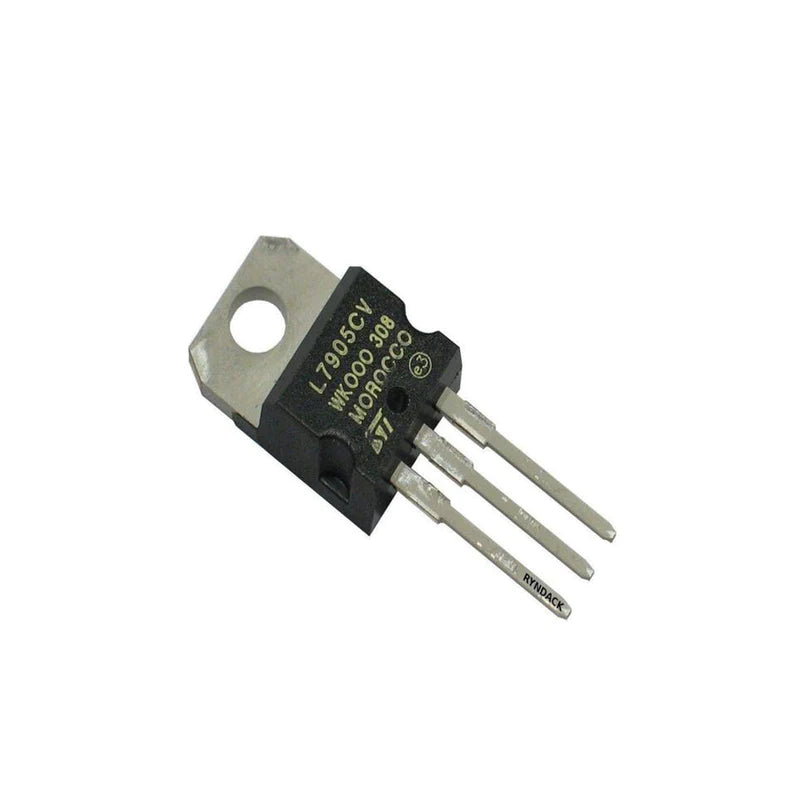

LM7905 7905 IC -5V Voltage Regulator IC

LM7905 7905 IC -5V Voltage Regulator IC

Description The LM7905 series of three terminal negative regulators is available in TO-IC. with a variety of preset output voltages, making them suitable for a broad range of applications. Internal...
23 people are viewing this right now

Availability: Out of stock

Ask For Price
SKU: ATC-4247
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Voltage Regulator
View full product details

Description

The LM7905 series of three terminal negative regulators is available in TO-IC. with a variety of preset output voltages, making them suitable for a broad range of applications. Internal current limiting, thermal shutdown, and safe operating area protection are used by each kind, making it almost indestructible.

Features:

  • LM7905 is a Negative voltage regulator that outputs -5 volts
  • The LM7905 is a three-pin IC
  • Output Current up to 1.5A
  • Thermal Overload Protection
  • Short Circuit Protection
  • Available in TO-220 package
  • Thermal Resistance Junction-Cases (TO-220): °C/W
  • Thermal Resistance Junction-Air (TO-220): °C/W
  • Operating Temperature Range: -40° - 125° C
SPECIFICATIONS:
Part Number  LM7905
Type Voltage Regulator
Voltage 5V
Current 1.5A
Package TO-220
