Description :-

LRS-450 series is a 450W single-output enclosed type power supply with 35mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 5V,12V, 15V, 24V, 36V and 48V.In addition to the high efficiency up to 92%, with the built-in long life fanLRS-450 can work under -20~ +70C with full load. LRS-450 has the complete protection functions and 5G anti-vibration capability; It is complied with complete international safety regulations LRS-450 series serves as a high price-to-performance power supply solution for various industrial applications.

Feature :-

• AC input range selectable by switch
• Withstand 300VAC surge input for 5 second
• Protections; Short circuit/Overload/Over voltage /Over temperature
• Forced air cooling
• High operating temperature up to 70degree
• Operating altitude up to 5000 meterrs

Applications :-

• Industrial automation machinery
• Industrial control system
• Electronic instruments , equipments or apparatus

Specification :-

• Brand: MEANWELL
• Input Voltage Range :90 - 132VAC / 180 - 264VAC BY SWITCH 255/370VDC
• Efficiency: 91%
• Output Voltage:24VDC
• Output Current:18.8Amp
• Output Type: Single
• Dimensions :215 x 124 x 35 mm
• Output Power:451.2 Watt
• Adjustable Voltage: 22.8VDC - 26.4VDC

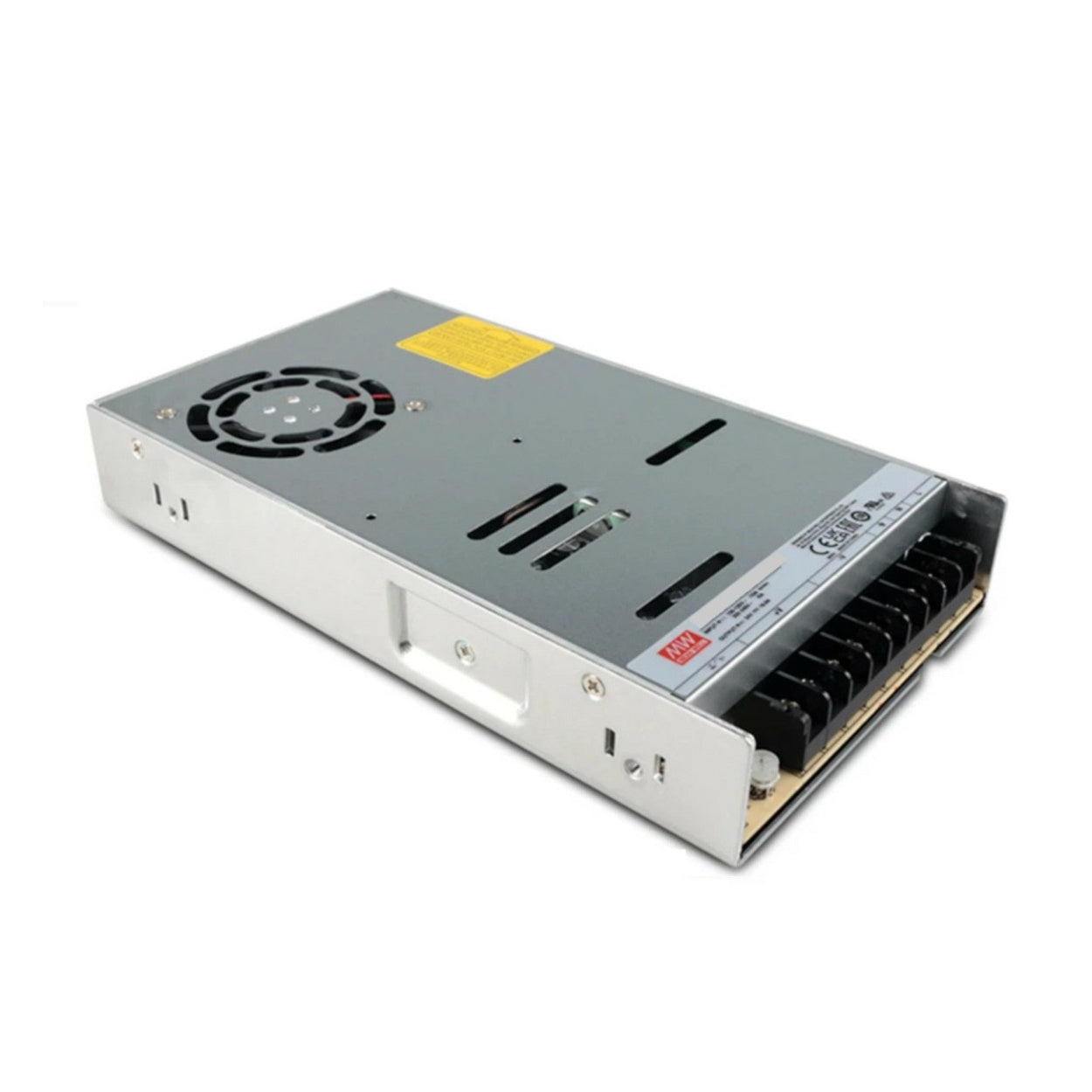

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
