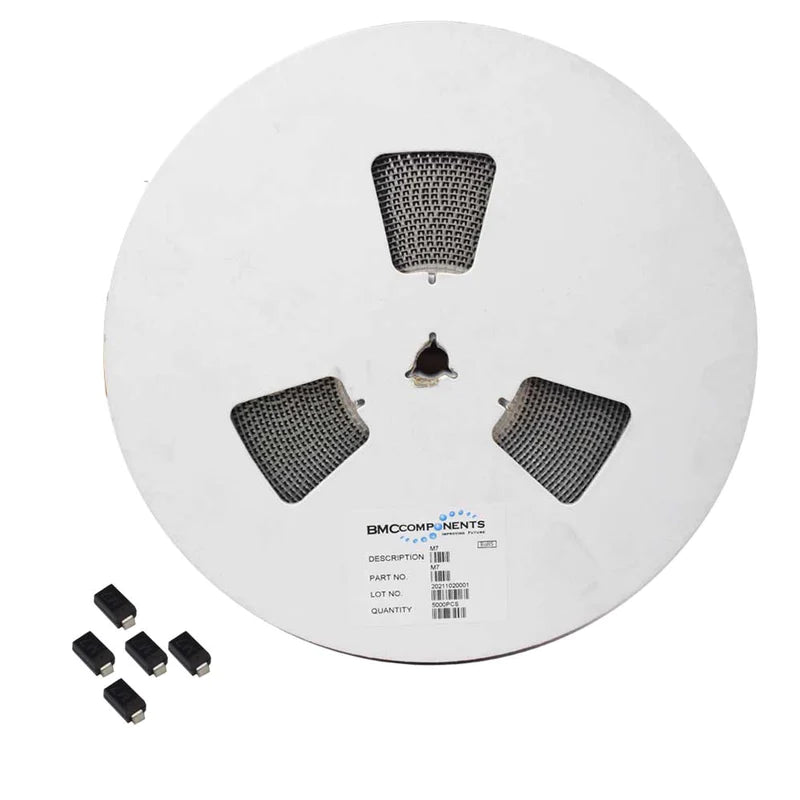

M7 - 1N4007 SMD Diode (Pack of 5000)

M7 - 1N4007 SMD Diode (Pack of 5000)

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The M7(1N4007) Diode is a Surface Mount General Rectifier and has a Plastic Passivation Junction Reverse Voltage of 50 to 1000 Volts with a Forward Current of 1.0 Ampere. ...
25 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3450
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

The M7(1N4007) Diode is a Surface Mount General Rectifier and has a Plastic Passivation Junction Reverse Voltage of 50 to 1000 Volts with a Forward Current of 1.0 Ampere.

Features

  • Case: JEDEC DO-214AC molded plastic body
  • Terminals Solder plated per MIL-STD-7SO, Method
  • Polarity: Color band denotes the cathode end
SPECIFICATION
Model M7
Brand BMC Components
Peak Repetitive Reverse Voltage (VRRM) 1000V
Maximum RMS Voltage (VRMS) 700V
Maximum DC Blocking Voltage (VDC) 1000V
Maximum Average Forward Rectified Current (IFAV) 1A
Non-Repetitive Peak Forward Surge Current (IFSM) 30A
Operating Junction Temperature Range (TJ) − 65°C to +175°C
Storage Temperature Range (Tstg) − 65°C to +175°C
Quantity 5000
Mounting Type SMD
