Description

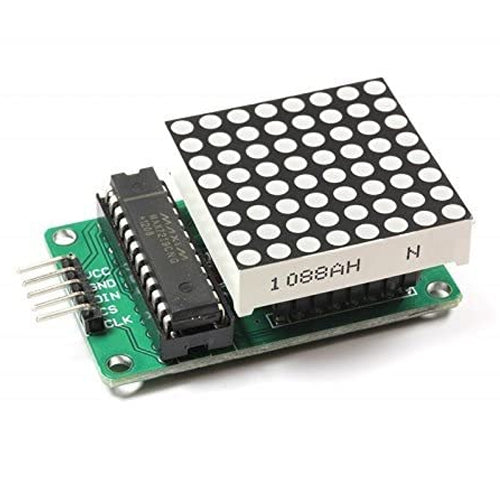

This module used an MAX7219 chip to drive an 8 x 8 LED matrix which can be used in various electronic display panels. This module is based on the MAX7219 chip, a compact, serial input common-cathode driver that interfaces microcontrollers to LED matrices. All common microcontrollers can be connected to this module by using a 4-wire serial interface. Each output can be addressed without refreshing the entire display. This module requires only 3 I/O lines for driving the display, making it ideal for your microcontroller projects.

Features

• MAX7219 Driver Board
• A single module can drive an 8*8 common cathode matrix
• Module with input and output interface, supporting multiple module cascade
• 4 fixing screw holes, 3mm aperture, can be fixed with M3 copper column

Pin Connection

• Vcc    –     Pin 1
• GND  –     Pin 2
• DIN    –     Pin 3
• CS     –     Pin 4
• CLK   –     Pin 5

Specification

• Operating Voltage: 5 V
• Operating Current: 320mA
• Driver Chip: MAX7219
• LED Color: Red
• Requires only 3 communication wires of MCU
• Cascading multiple Matrix LED Module is very easy
• The size of the display is very compact
• The PCB features 4 holes for mounting
• Module Size:
• Length: 56mm
• Width: 34mm
• Height: 12mm
• Weight: 20gm

Application

• Bar-Graph Displays
• 7-Segment Displays
• Industrial Controllers
• Electronic Panel Meters
• LED Matrix Displays
• Display symbols, simple graphics, and texts.

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
