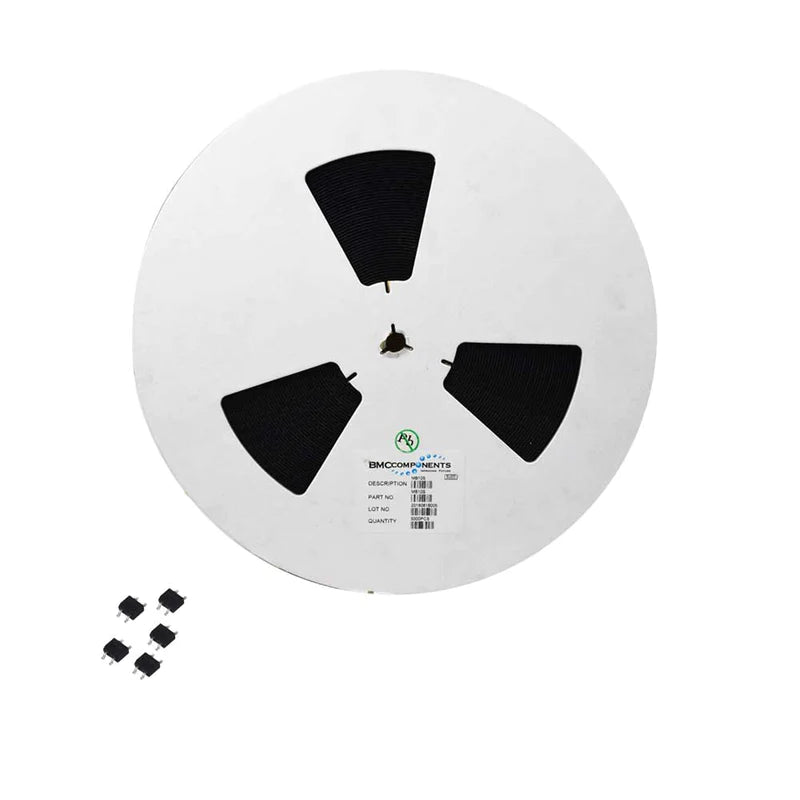

MB10S 0.5A 1000V Bridge Rectifier Diode SOIC-4

MB10S 0.5A 1000V Bridge Rectifier Diode SOIC-4

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The MB10s is a bridge rectifier commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad...
16 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3715
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Bridge Rectifier
View full product details

Description

The MB10s is a bridge rectifier commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 0.5A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1V. It has high efficiency and a high surge current capability of 30A. If you are looking for a compact IC for rectification application this can be a good choice.

Pinout

Pin  Pin Name Pin Description
1 Positive Positive of Rectified Output
2 AC Input AC Input
3 Negative Negative of Rectified Output
4 AC Input Ac Input

Features

  • Surface Mount Package
  • Glass Passivated Diode Construction
  • Moisture Resistant Epoxy Case
  • High Surge Current Capability

Application

  • Suitable for AC to DC bridge full wave rectification for SMPS, LED lighting, adapter, battery charger, home appliances, office equipment, and telecommunication applications

Specifications

Model MB10S
Brand BMS Components
Mounting Type SMD
Input Voltage 50-1000V
Maximum RMS Bridge Input Voltage 700V
Maximum DC Blocking Voltage 1000V
Maximum Average Forward Output Current 0.5A
Maximum Forward Voltage Drop per Bridge 1V
Operating Temperature Range: -55 to + 150°C
Package SOIC-4
