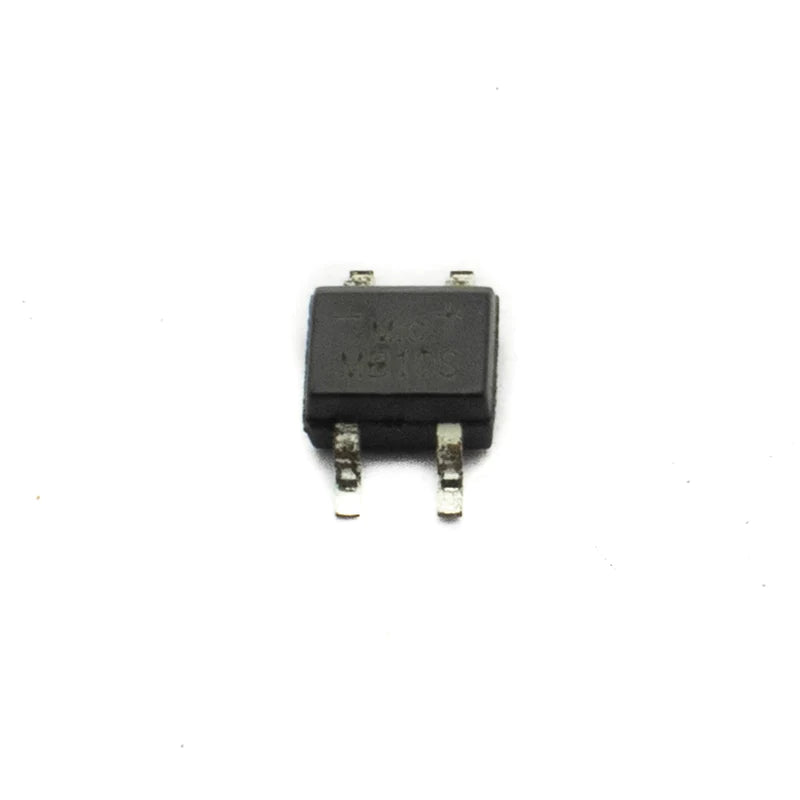

The MB10s is a bridge rectifier commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 0.5A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1V. It has high efficiency and a high surge current capability of 30A. If you are looking for a compact IC for rectification application this can be a good choice.
Features:
| Part Number | MB10s |
| Input Voltage | 50-1000V |
| Maximum RMS Bridge Input Voltage | 700V |
| Maximum DC Blocking Voltage | 1000V |
| Maximum Average Forward Output Current | 0.5A |
| Maximum Forward Voltage Drop per Bridge | 1V |
| Operating Temperature Range: | -55 to + 150°C |
