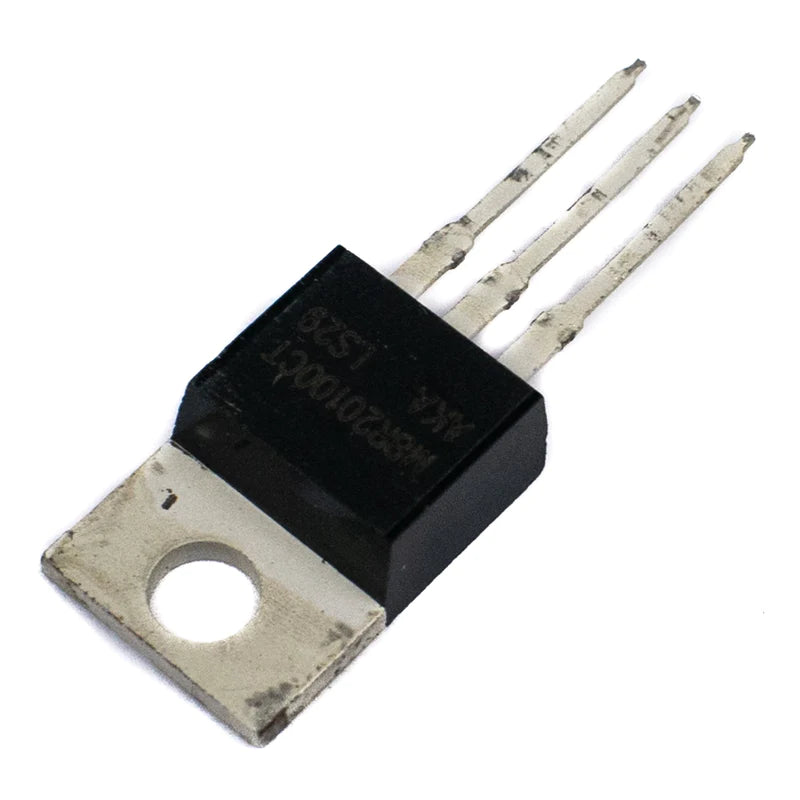

The MBR20100CT is a Schottky Diode Rectifier used in low voltage/high-frequency inverters, freewheeling, and polarity protection applications. The MBR20100 is a TO-220 package dual Schottky diode with a common cathode for high current applications. This can drive up to 20A through each diode with a peak reverse voltage of 100V because each diode has a forward current of 10A. The MBR20100 is a dual rectifier diode commonly used in converter circuits. It can be used in voltage clamping protection and filter circuits.
Features
| Part Number | MBR20100CT |
| Package | TO-220 |
| Peak Reverse Voltage | 100V |
| Forward Voltage drop | 0.9V (per leg) |
| Reverse Current | 6mA |
| Non-Repetitive Peak Current | 150A |
| Rate of charge (dv/dt) | 10k V/us |
| Operating Temperature | 65 to 150° C |
