Description :-

LRS-150 series is a 150W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC(selectable by switch), the entire series provides an output voltage line of 12V, 15V, 24V, 36V and 48V.

Feature :-

• No load power consumption <0.5W for 150W;  <0.75W for 200W/350W

• AC input selectable by switch

• Withstand 300VAC surge input for 5 seconds

• Ultra compact and 1U low profile

• Withstand 5G vibration test

• High operating temperature up to 70oC

• Protections:  Short circuit / Overload / Over voltage / Over temp.

• Cooling by free air convection (150W/200W);  forced air cooling by built-in DC fan (350W)

• Compliance to IEC/EN60335-1(PD3) and  IEC/EN61558-1,-2-16 for household appliances (150W)

• Operating altitude up to 5000 meters

• LED indicator for power on

• High efficiency, long life and high reliability

• Low cost

Specifications :-

• Part No: LRS-200-5
• Manufacturer: MEAN WELL
• Product Category: Switching Power Supplies
• RoHS Compliant
• Output Voltage-Channel 1: 5 VDC
• Number of Outputs: 1 Output
• Output Power: 200 W
• Open Frame/Enclosed: Enclosed
• Input Voltage: 90 VAC to 132 VAC, 180 VAC to 264 VAC, 240 VDC to 370 VDC
• Output Current-Channel 1: 40 A
• Industry: Commercial
• Isolation Voltage: 3 kV
• Mounting Style: Chassis
• Length: 215 mm
• Width: 115 mm
• Height: 30 mm
• Approvals: UL60950-1
• Series: LRS-200
• Input Frequency: 47 Hz to 63 Hz
• Compliance: UL60950-1
• Load Regulation: Regulated
• Subcategory: AC-DC Power Supply

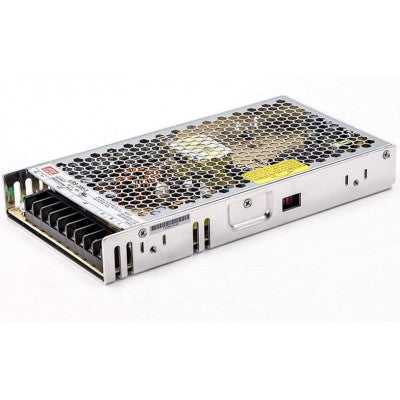

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
