Description :-

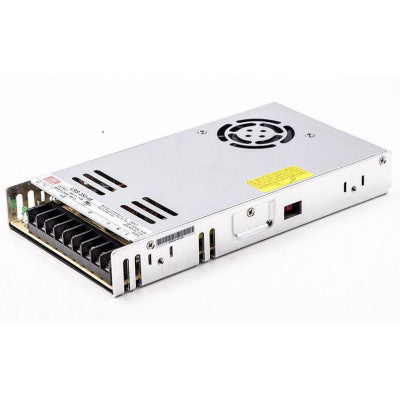

The Mean Well LRS-350-48 is a high-performance switching power supply (SMPS) engineered to deliver a stable output voltage of 48V with a maximum current of 7.3A, resulting in a power output of 350.4W. With its compact and durable design, this SMPS is suitable for a diverse range of industrial and commercial applications requiring dependable power delivery. It incorporates comprehensive protection mechanisms against over-voltage, over-current, and short-circuit conditions to safeguard connected devices. The Mean Well LRS-350-48 is an optimal choice for powering LED lighting systems, industrial machinery, and various electronic equipment, providing efficient and reliable performance in demanding environments.

Feature :-

• The space-saving form factor for easy installation.

• Includes over-voltage, over-current, and short-circuit protections for device safety.

• Compatible with a wide range of input voltages.

• Built with high-quality components for long-term reliability.

• Suitable for various industrial and commercial applications.

• Meets safety and quality standards for peace of mind.

Specification :-

• Type :- Enclosed Type

• Approx. Wattage :- 350W

• Features :- Standard

• Series :- LRS(Reliable)

• Mechanical Form :- Enclosed

• AC input voltage range :- 115 / 230VAC by switch

• AC inrush current (max.) :- Cold start, 60A at 230VAC

• DC adjustment range :- ±10% by potentiometer

• Overload protection Range :- 110%~140%

• Overload protection Type :- Hiccup mode, auto-recovery

• Over voltage protection Range :- 115%~145% rated output voltage

• Over voltage protection Type :- Shut down o/p voltage, re-power on to recover

• Withstand voltage :- I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC

• Working temperature :- -25~+70°C (refer to output derating curve)

• IP Level :- Non-Waterproof

• Safety standards :- UL60950-1 approved

• EMC standards :- Design refer to EN55022 class A

• Connection :- 9P/9.5mm pitch terminal block

• Dimension (LxWxH) :- 215x 115x 30

*Note: Product Image are shown for illustrative purposes only and may different from the actual product
