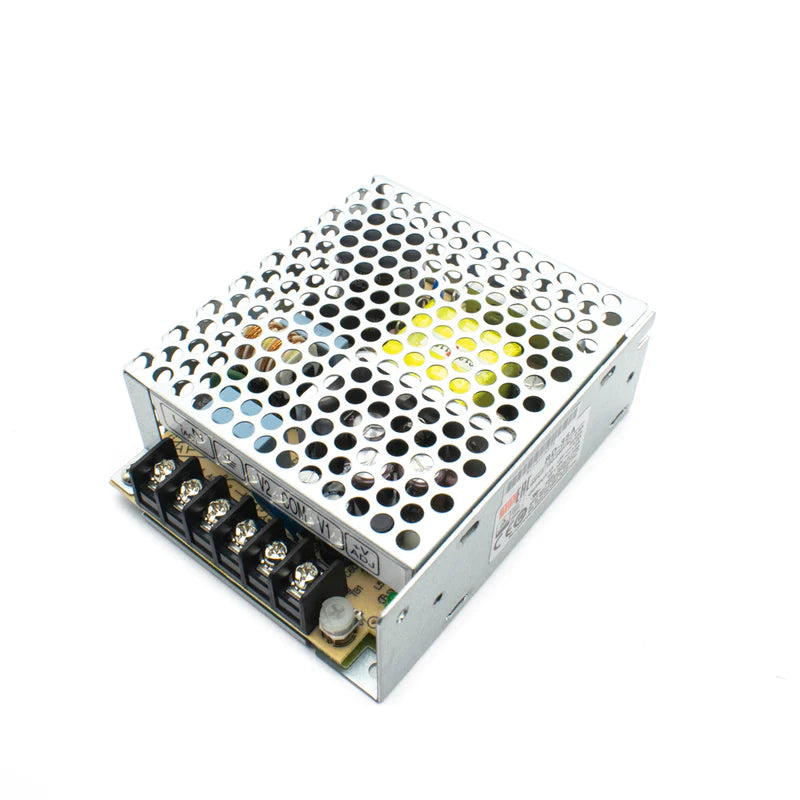

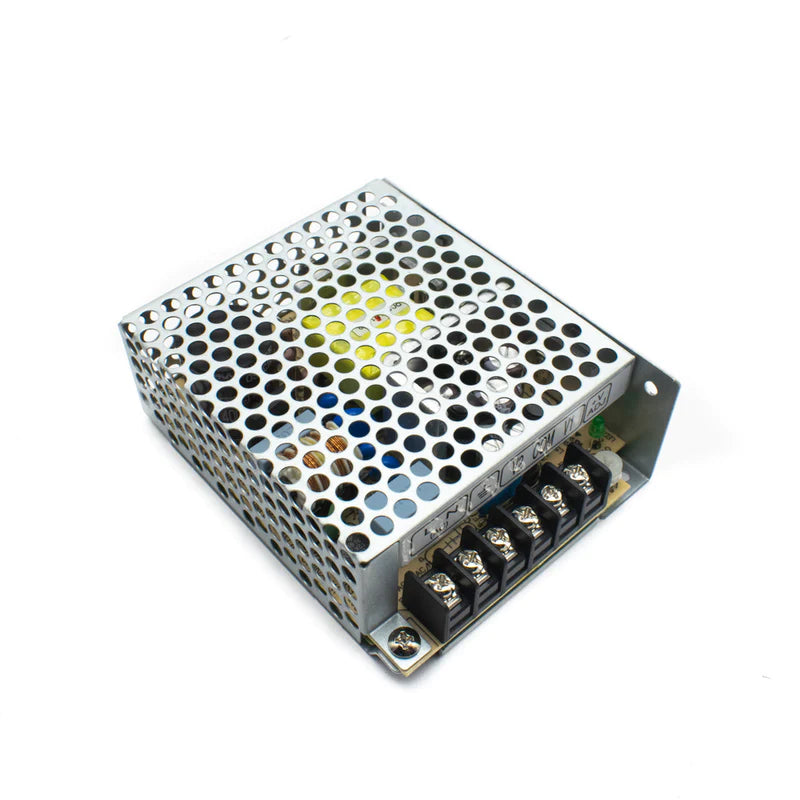

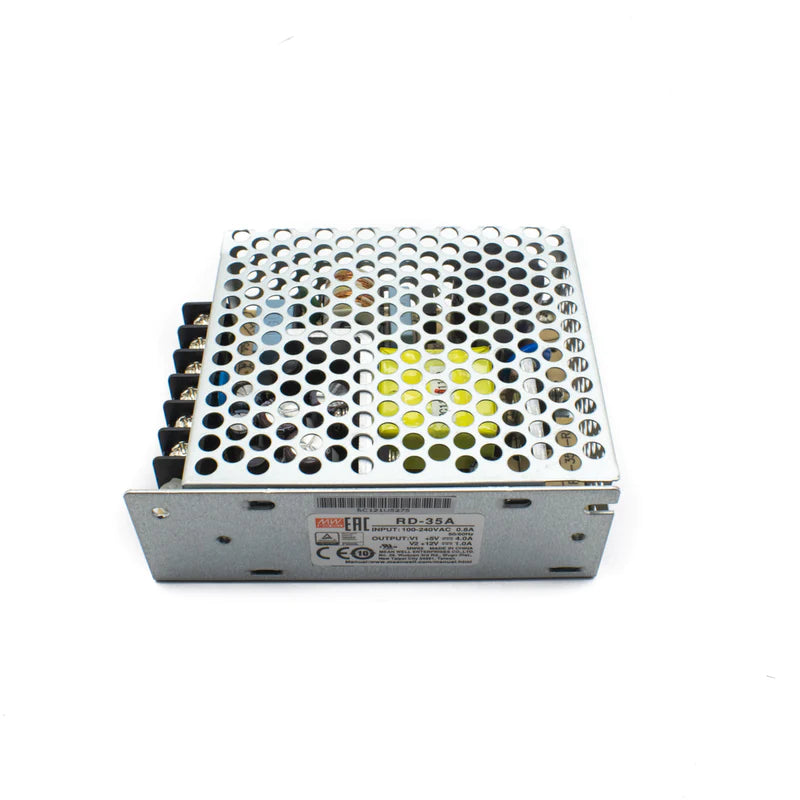

Meanwell RD35A (5V,12V) 35W Dual Output Switching Power Supply

Meanwell RD35A (5V,12V) 35W Dual Output Switching Power Supply

₹ 1,429.00
₹ 1,476.00 ₹ 1,429.00
Sold Out
Tax included. Shipping calculated at checkout.
Description RD-35A series is a 35W Dual-output enclosed type power supply with 36mm of low profile design. The AC input is 88~264VAC which could be directly supplied from the house...
17 people are viewing this right now

Availability: In stock

SKU: ATC-2657
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Meanwell SMPS SMPS
View full product details

Description

RD-35A series is a 35W Dual-output enclosed type power supply with 36mm of low profile design. The AC input is 88~264VAC which could be directly supplied from the house supplied voltage. The output Voltages from SMPS will be +5V, +12V. The SMPS has high efficiency up to 79%, the design is of metallic mesh case which enhances the heat dissipation of RD-35A that the whole series operates from -25°C through +70°C. RD-35A has complete protection functions and 5G antivibration capability; it complies with international safety regulations such as UL62368-1, TUV BS EN/EN62368-1. RD-35A series can be used for many purposes with the best performance from it.

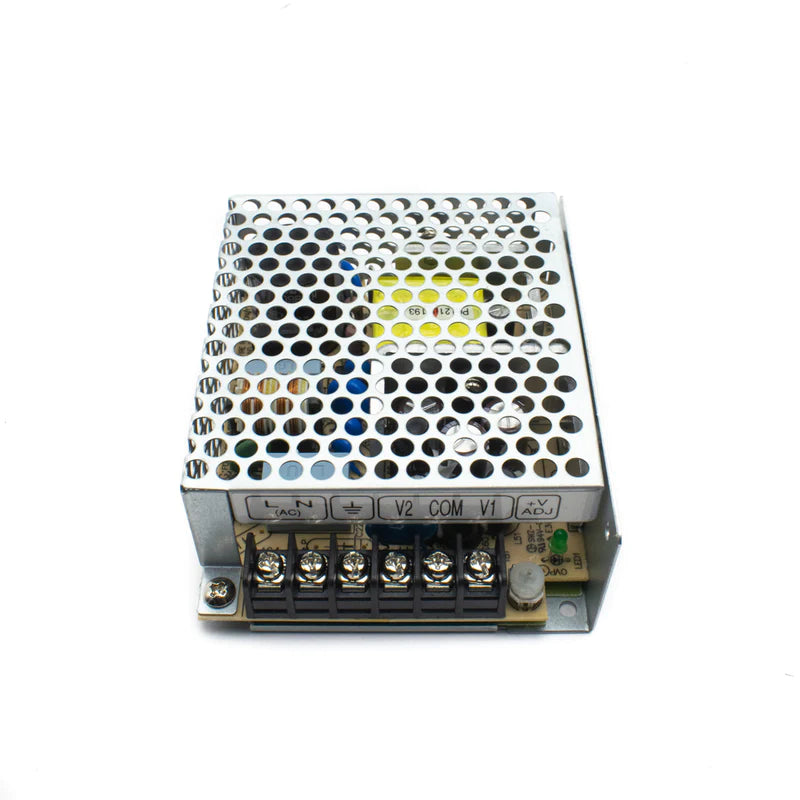

Pinout

Pin No. Pin name Description
1,2 AC/L&N Supplied AC Voltage (88 ~ 264VAC)
3 FG GND
4 V2(+V) DC OUTPUT +12V
5 COM Negative for DC Outputs
6 V1(+5V) DC OUTPUT +5V



Feature

  • Universal AC input/ Full range
  • Protections: Short circuit/ Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5-second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus
  • Household appliances
SPECIFICATIONS
Model RD-35A
Brand Meanwell
DC Voltage (through two voltage channel) +5V(V1) , +12V(V2)
Rated Current V1-4A, V2-1A
Rated Power 32W
Ripple & Noise V1-80mVp-p , V2-120mVp-p
Voltage Adj. Range CH1(V1): 4.75 ~ 5.5V
Voltage Tolerance V1- ±2.0% , V2- ±6.0%
Line Regulation V1- ±0.5% , V2- ±1.5%
Load Regulation V1- ±0.5% , V2- ±3.0%
Setup, Rise Time 500ms, 30ms/230VAC        1200ms, 30ms/115VAC at full load
Hold Up Time 80ms/230VAC          16ms/115VAC at full load
Input Voltage Range 88 ~ 264VAC              125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
Frequency Range 47 ~ 63Hz
Efficiency 79%
AC Current 0.8A/115VAC            0.55A/230VAC
Over Load

110 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed
    Working Temperature -25°C to 70°C
    Working Humidity 20~90% RH
    Dimensions(L*W*H) 99*82*36mm
