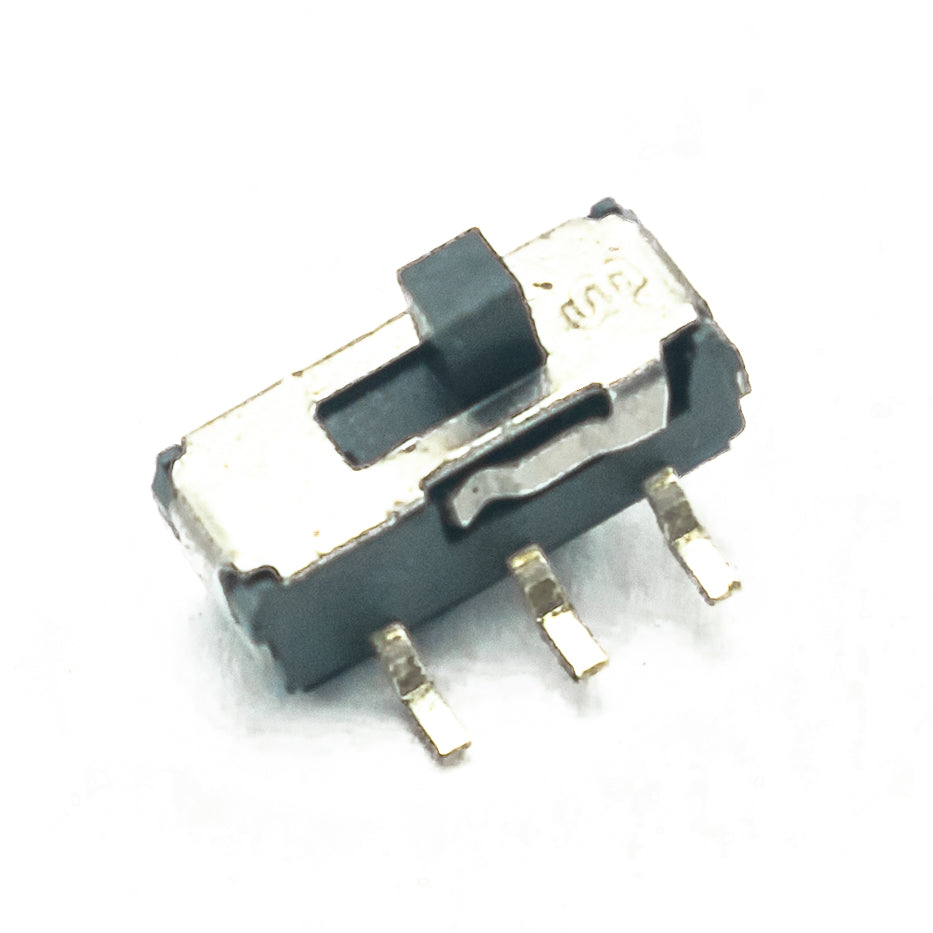

Micro DPDT Slide Switch 6 Pin Two Position

Micro DPDT Slide Switch 6 Pin Two Position

Description This is a surface-mounted DPDT slide switch. A DPDT (Double Pole Double Throw) switch is made up of two SPDT switches that can control two different circuits but are...
27 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2423
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Slide & Toggle Switch
View full product details

Description

This is a surface-mounted DPDT slide switch. A DPDT (Double Pole Double Throw) switch is made up of two SPDT switches that can control two different circuits but are always connected by a single actuator. It has six pins and can switch 0.3 amps @ 6V by sliding a 2mm mini actuator. Slide switches are commonly found in electric toys, music equipment, fax machines, test instrument equipment,  laptops, and remote control devices that have limited PCB area and height limits and other low-voltage circuit electrical devices.

SPECIFICATION
Material Plastic and Metal
Contact Configuration DPDT
Switch Operation ON-ON
Mounting Type Surface Mount
Max. Operating Voltage 6V
Max. Operating Current 300mA
Size 9x7.5x6.5mm
