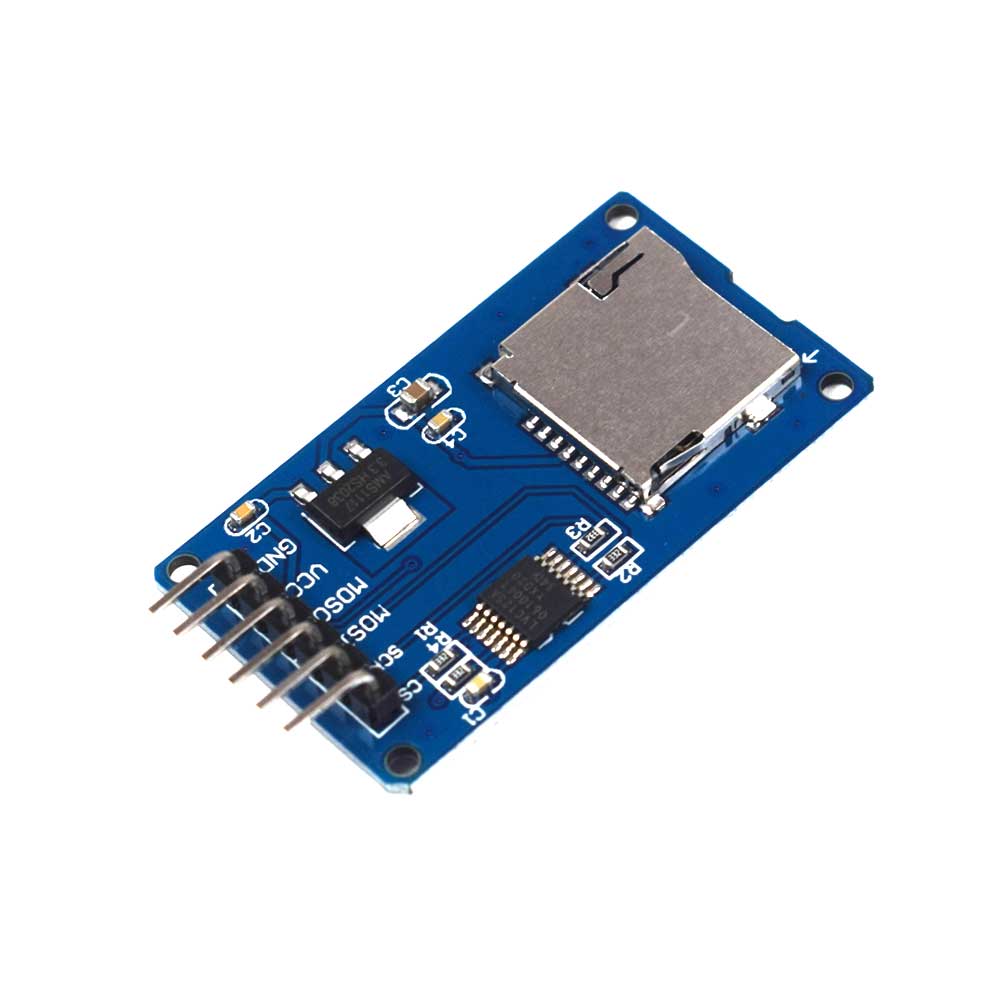

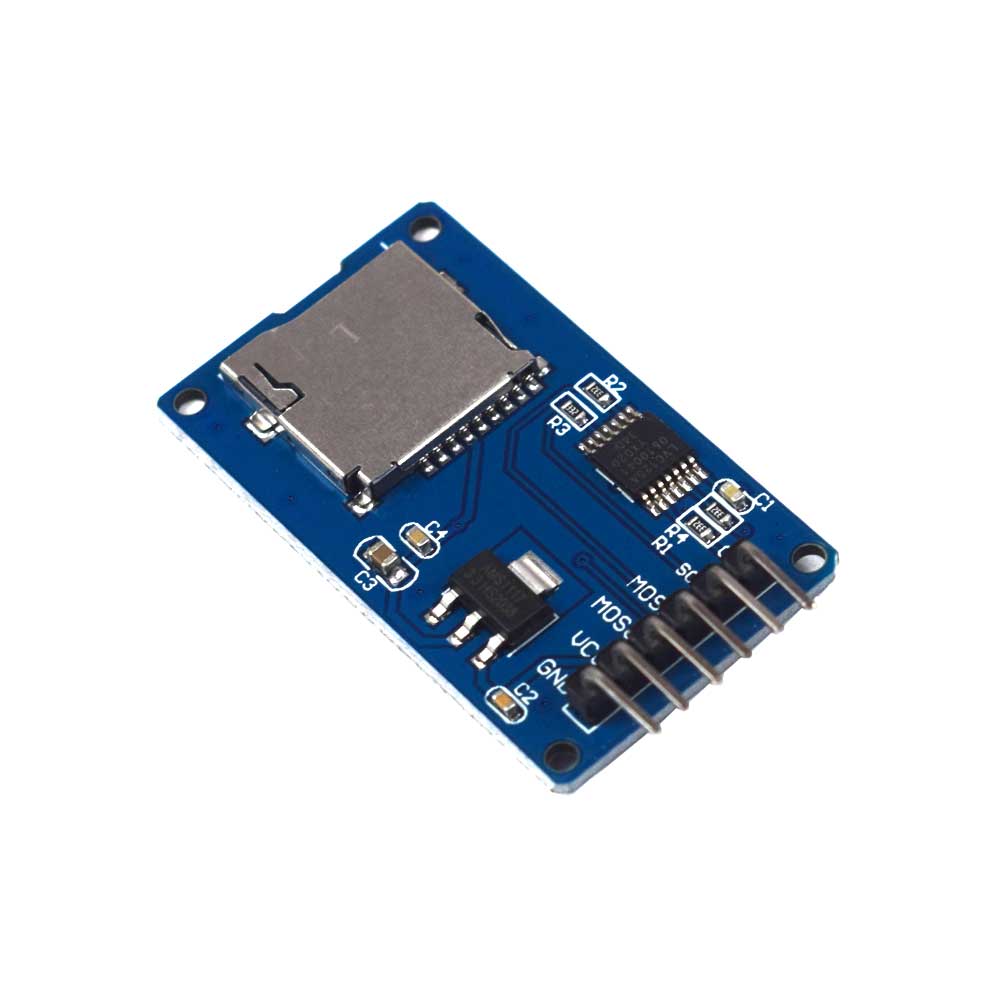

Micro SD card Reader (Interface) Module

Micro SD card Reader (Interface) Module

Description This is a Micro SD card reader module that uses the SPI interface and a file system driver to complete the MicroSD card read and write operations. To complete...
16 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-3225
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

This is a Micro SD card reader module that uses the SPI interface and a file system driver to complete the MicroSD card read and write operations. To complete the library card initialization and read-write, Arduino users can use the Arduino IDE, which comes with an SD card. The voltage Regulator and Level Shifter are the two main components of the micro SD card module. The onboard ultra-low dropout regulator converts 5V to 3.3V, while the Level Shifter converts the interface logic from 3.3V-5V to 3.3V.

Features:

  • The communication interface is a standard SPI interface
  • Supports micro SD car
  • 3.3V voltage regulator circuit board
SPECIFICATION
Product Micro SD card Module
Function Push to insert/ Push to eject
Operating Voltage 4.5V – 5.5V
No. of Pins 06

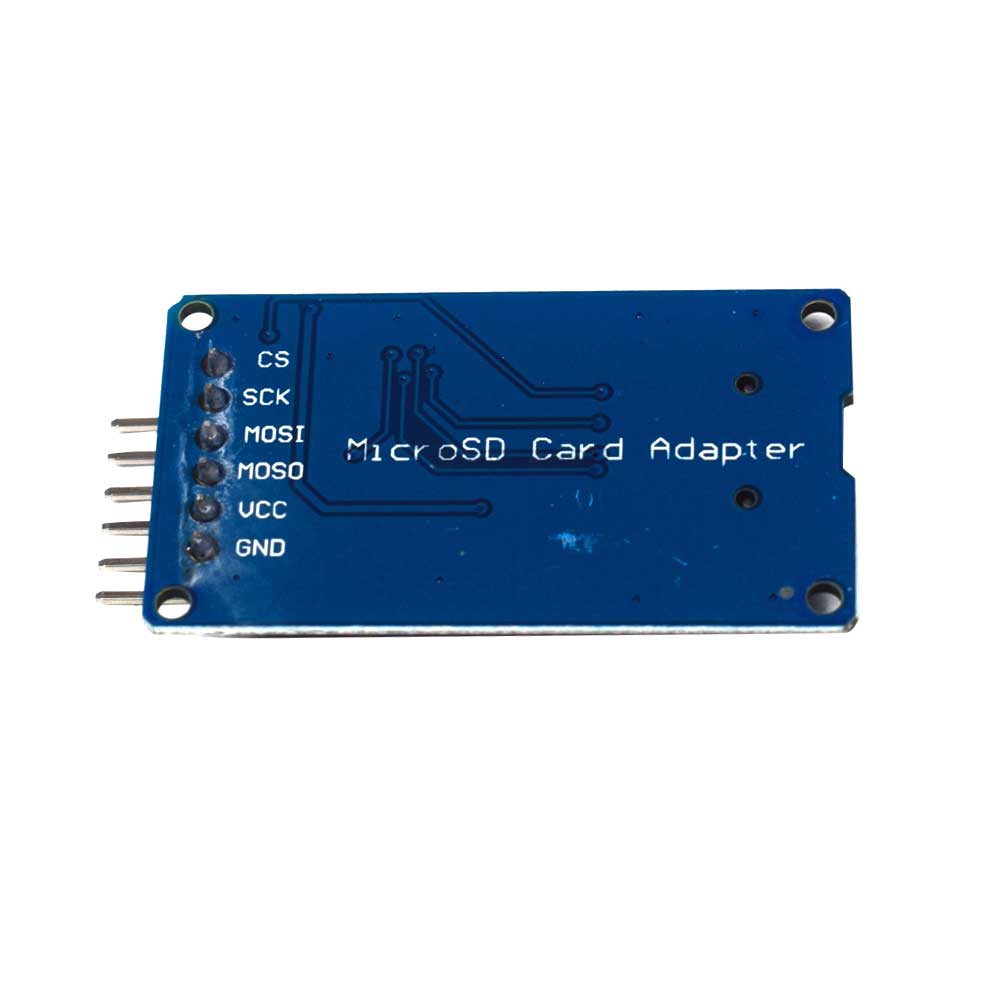

Control Interface GND, VCC, MOSO, MOSI, SCK, CS
Operating Temperature -25°C to +85°C
Positioning Holes 4 M2 screws positioning hole diameter of 2.2mm
Current 0.2~200mA
Size (H*W*D) (mm) 41.5*23.6*3.1 (mm)
