We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

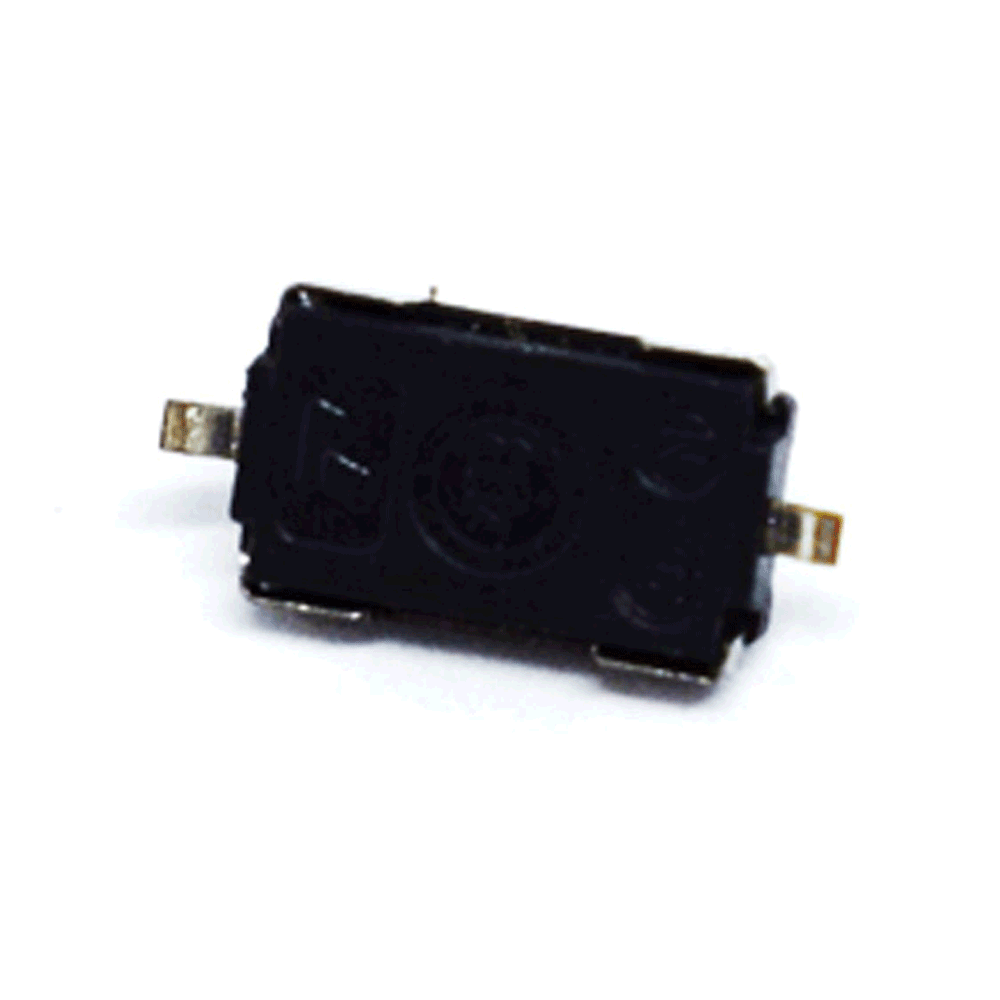

It's a Micro SMD Push Button 3x6x2.5 SMD. This is a momentary type push button switch which has contact resistance 10M ohm maximum and insulation resistance 100m ohm minimum at 500vdc. It has operating voltage 12v dc and 500mA current.
| Contact Type | Momentary Type |
| Mounting Type | SMD |
| Dimension | 3 x 6 x 2.5 mm (L*W*H) |
| Rating | 12V/50mA |
| Electrical | 50,000 cycles for 160gf |
| Contact Resistance | 100mΩ max. |
| Insulation Resistance | 100MΩ min., at 500VDC |
| Colour | Red |
