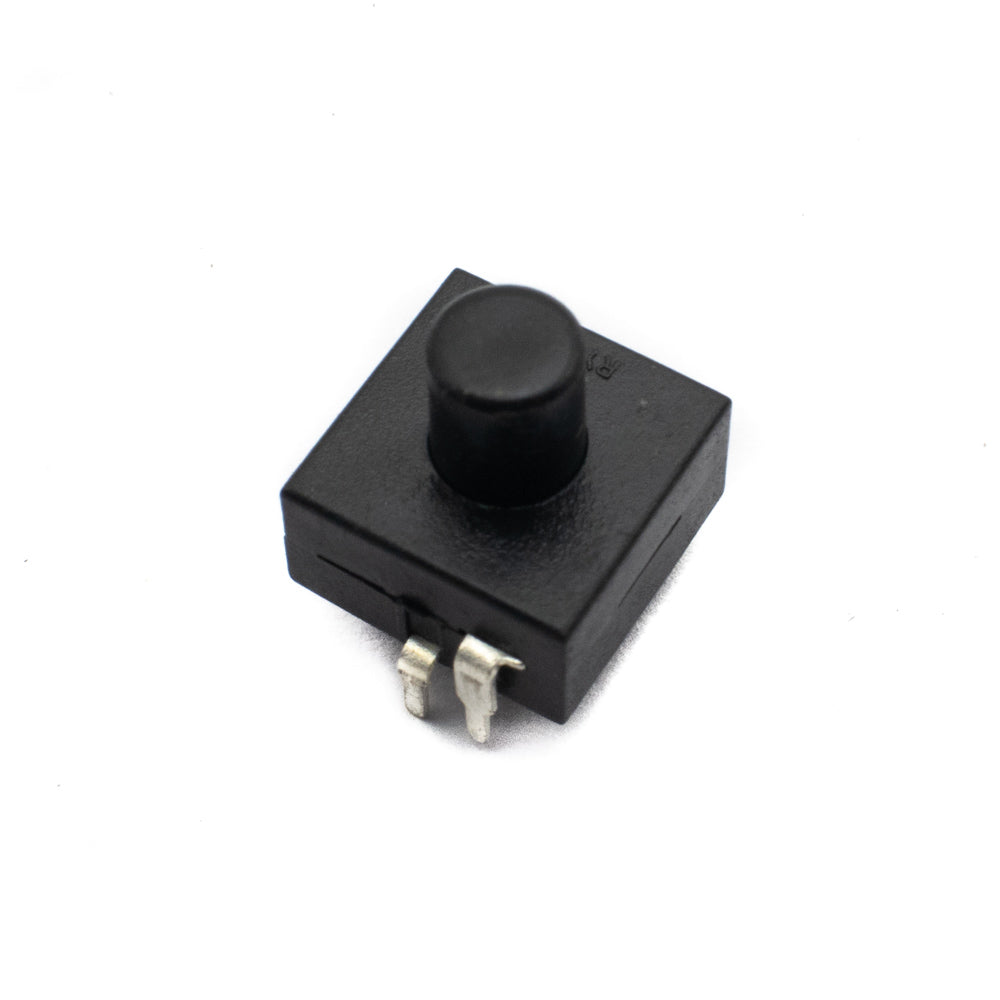

Mini Push Button Electric Torch Switch ON-ON-OFF

Mini Push Button Electric Torch Switch ON-ON-OFF

Description This 4 pin push switch is a latching type with three modes of operation and it is generally used in a torch where pressing a button for the first...
15 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2359
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Push Button
View full product details

Description

This 4 pin push switch is a latching type with three modes of operation and it is generally used in a torch where pressing a button for the first time turn ON the light when it is pushed for the second time torch's light beam changes and the third press turns OFF the torch. This switch can also be used in other similar applications.

SPECIFICATIONS
Rated Voltage 30V DC
Rated Current 1A
Type  Push Button
Function ON-ON-OFF (Position-Shift)
Number of Pins 4
Colour Black
Material Plastic
Protection Level IP40
Size 12x11.8x11.8mm
