Description :-
MPU6050 module uses the popular MPU6050 Sensor which includes both a 3 axis accelerometer and a 3 axis gyroscope in a single package.The sensor can be interfaced through a I2C connection which allows an easy and direct interface between the sensor and a micro controller.
The MPU-6000/MPU-6050 family of parts are the world’s first and only 6-axis Motion Tracking devices designed for the low power, low cost, and high performance requirements of smartphones, tablets and wearable sensors.
The 6 Degree of Freedom sensor breakout integrate with the MPU6050 sensor and the low noise 3.3v regulator and pull-up resistors for the I2C bus. So it's available to directly hook up the sensor with the Arduino processors for your robotics,HCI and wearable projects.
Key Features of MPU 6050 Module :-
- I2C Digital Output of 6/9-axis MotionFusion data in various formats such as Euler Angle, Quaternion, Rotation Matrix, or Raw Data.
- Chip built-in 16-bit AD converter, 16-bit data output.
- Voltage Range: 2.3V to 3.4V.
- Selectable Jumpers: CLK, FSYNC, AD0.
- Gyro: ±250 to ±2000dps sensitivity.
- Accelerometer: ±2g to ±16g programmable range.
- DMP™ Engine: Offloads MotionFusion, sync, and gesture detection.
- Embedded Algorithms: Run-time bias and compass calibration.
- Digital Temperature Sensor: Output for temperature monitoring.
Differences Between MPU6000, MPU6050 and MPU6500 :-
-
MPU6000 Sensor: Offers an 8 kHz sampling rate, supporting both SPI and I2C interfaces. However, the I2C interface might be insufficient for handling an 8 kHz gyro update due to its slower nature. It boasts improved vibration sensitivity compared to the MPU6500.
-
MPU6050 Sensor: It offers an 8 kHz sampling rate and utilizes the I2C interface communication protocol. It exhibits superior vibration sensitivity compared to the MPU6500.
-
MPU6500 Sensor: It offers a 32 kHz sampling rate and compatibility with both I2C and SPI interfaces. Due to increased sensitivity to vibrations, it may require additional vibration isolation methods for optimal performance.
Uses of MPU 6050 Sensor :-
- The MPU6050 module 3-axis accelerometer and gyro sensor is an innovative product that allows motion tracking accurately and quickly.
- This module detects the tilt direction, vibration strength, resistance to shock, and acceleration in three directions: X, Y, and Z, with high accuracy, within a few millimeters or degrees.
- Thanks to its built-in temperature sensor and digital signal processing chip, this device can deliver impressive results using minimal power. It performs complex calculations like quaternion math operations efficiently.
- With simple I2C communication interface applications developed using the IMU device become more efficient allowing data collection at lower latency rates than traditional methods without sacrificing accuracy or battery life making it ideal for any project wanting an accurate yet affordable motion detection solution.

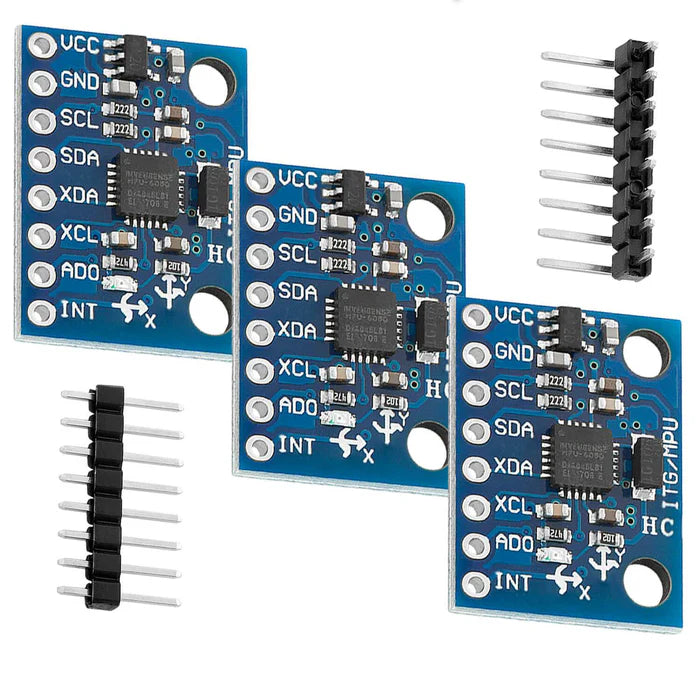

MPU 6050 Pinout :-

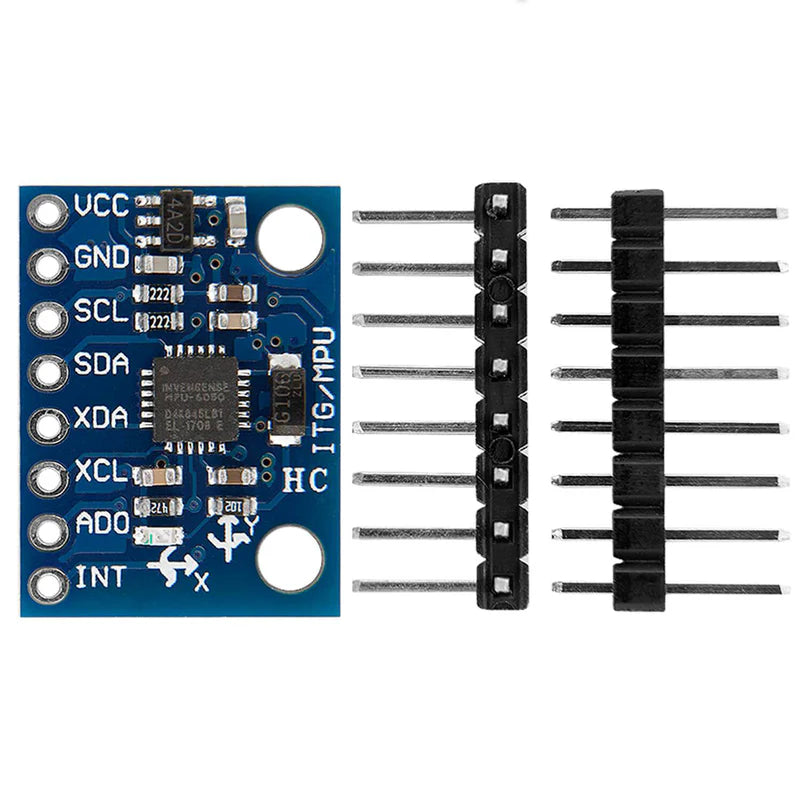

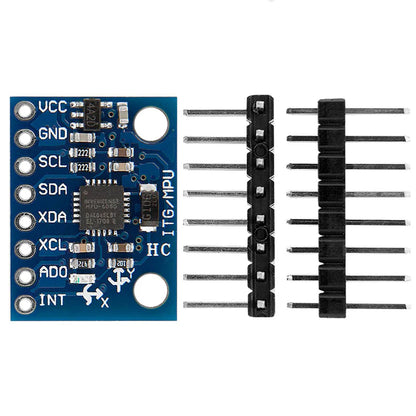

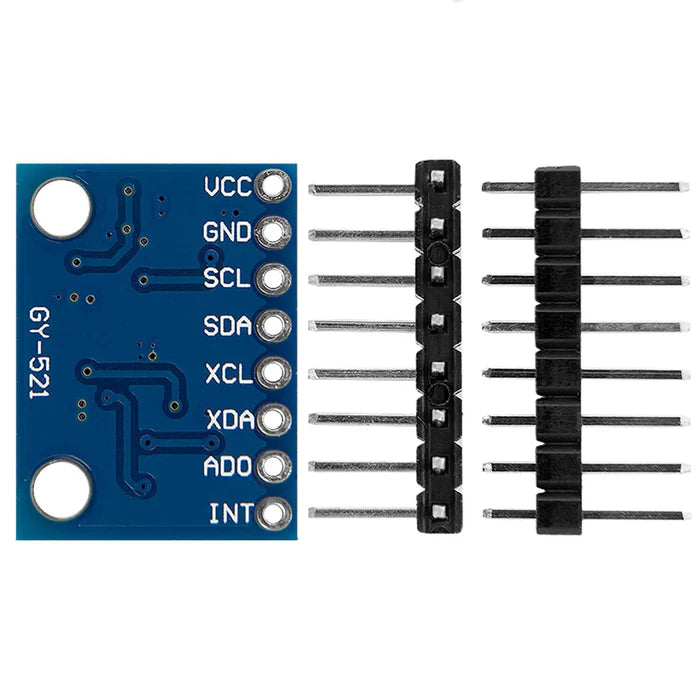

The MPU6050 is a common accelerometer and gyroscope module found in many DIY projects and robotics. This sensor comes in a small package with several pins for connecting to microcontrollers or other devices. Here's a breakdown of the MPU6050 pinout.
Package Includes :-
- 1 x MPU-6050 Triple-Axis Accelerometer & Gyroscope Module
Specifications :-
- On-board :- 3.3V regulator
- Interface :- I2C Interface
- Gyroscope operating current :- 3.6 mA
- Accelerometer normal operating current :- 500 µA
- Crystal frequency :- 32.768 KHz
- Input power supply :- 5V
- Dimensions :- 3 x 2 x 1cms

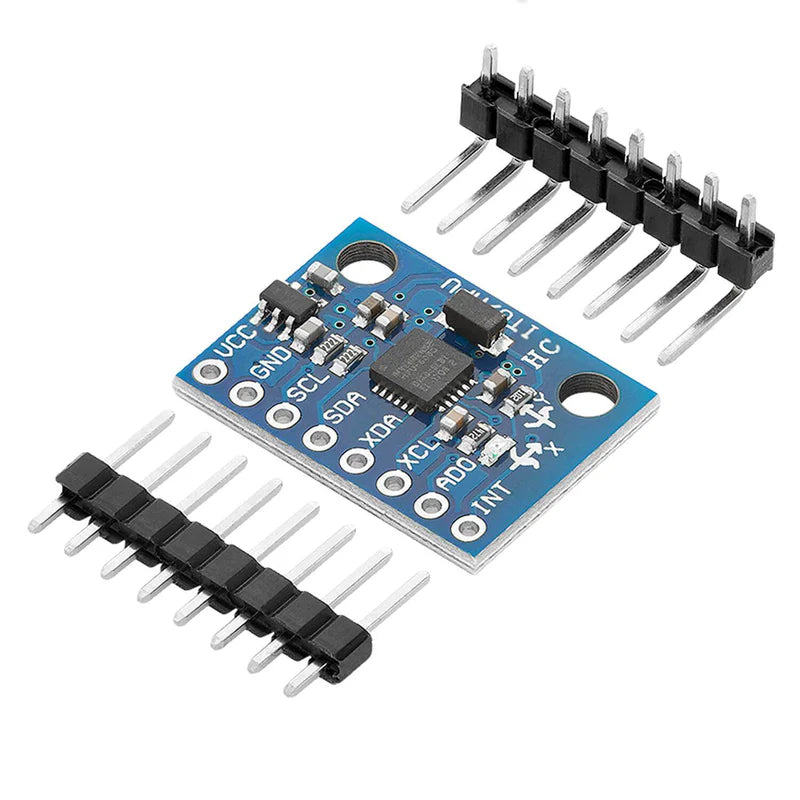

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
