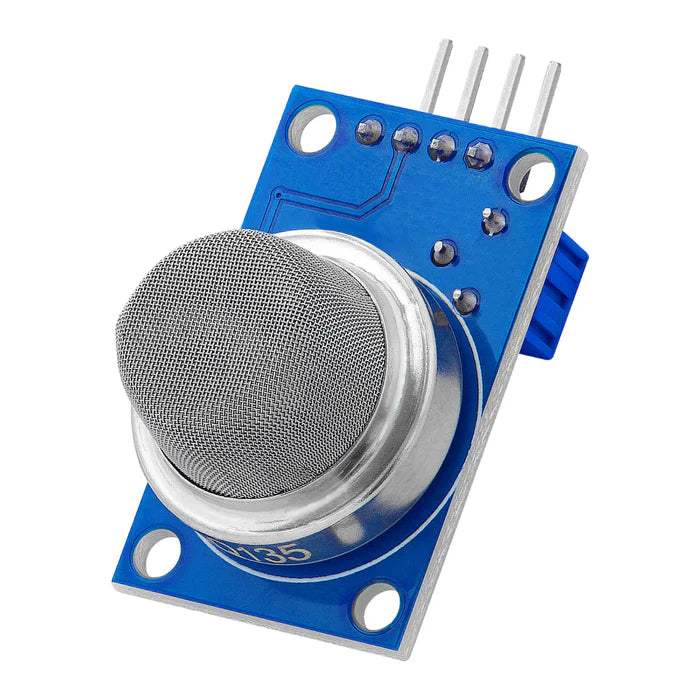

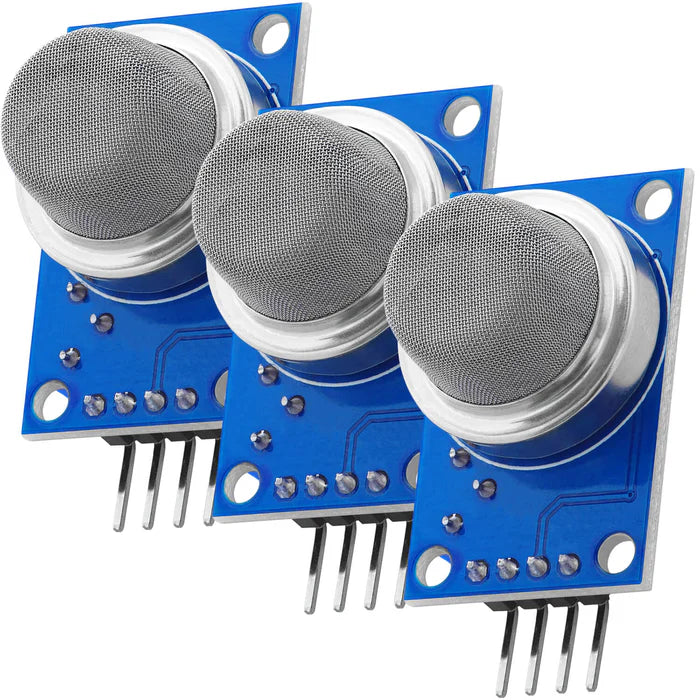

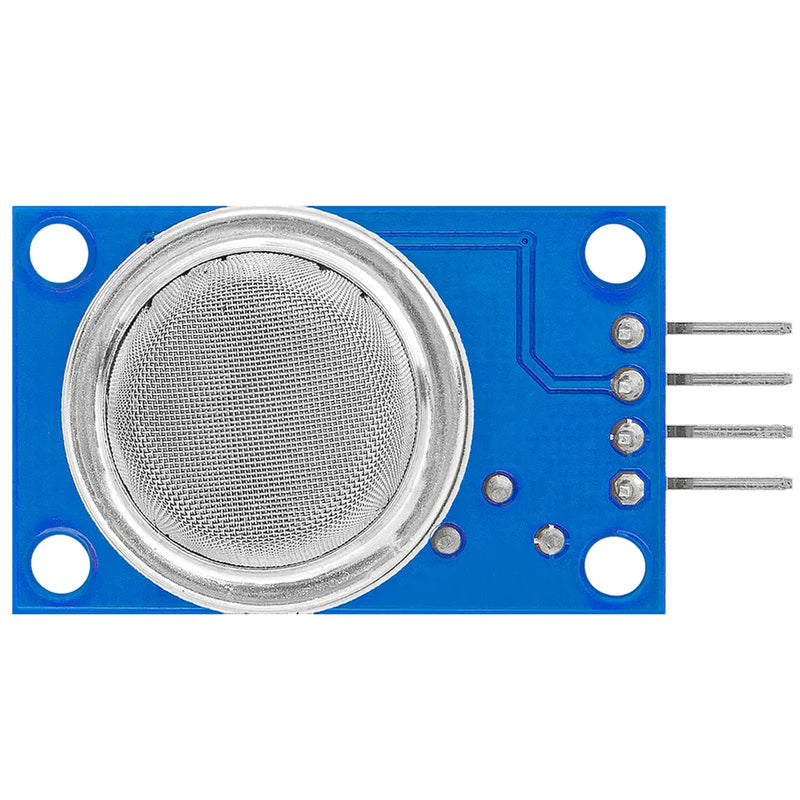

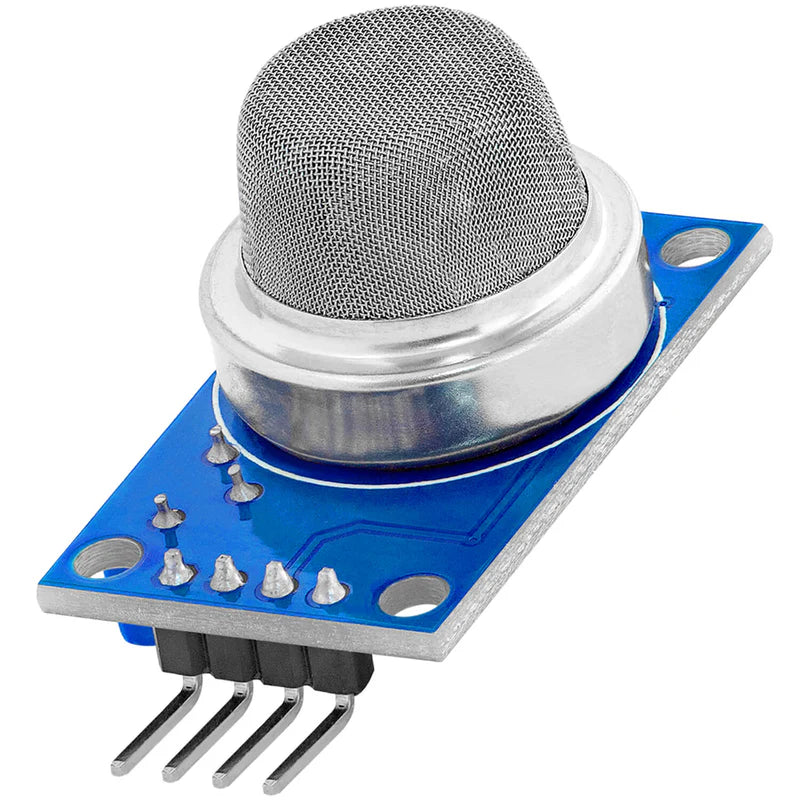

MQ-135 Air Quality Gas Sensor Module

MQ-135 Air Quality Gas Sensor Module

Regular price ₹ 120.00
Regular price ₹ 130.00 Sale price ₹ 120.00
Sold Out
Tax included. Shipping calculated at checkout.
Description Detecting air quality is getting more important as we need to take care of the only Earth that we have. And with the increasing air and environmental pollution, this...
23 people are viewing this right now

AvailabilityIn stock

SKU: ATC-4784
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

Detecting air quality is getting more important as we need to take care of the only Earth that we have. And with the increasing air and environmental pollution, this MQ135 Air Quality Sensor Module will be a good assistant and provide useful information about the surrounding air. This is a sensor module based on the MQ135 gas sensor uses in clean air low conductivity tin oxide (SnO2). It comes with basic components to enable the sensor to function properly and hook up easily to any controller that you preferred. When the sensor is kept in their environment, the conductivity in the sensor increases with the air pollution in gas concentration increases. By using a simple circuitry converts the conductivity changes to an analog voltage corresponding to the gas concentration. MQ135 Air Quality Sensor Module for ammonia, sulfide, benzene vapor high sensitivity of the smoke, and other harmful monitor is also very good. This sensor can be used to measure a variety of harmful gases and also low-cost sensors for a variety of applications.

Specifications

  • Wide detecting scope
  • Fast response and High sensitivity
  • Stable and long life
  • Operating Voltage is +5VDC
  • Detect/Measure NH3, NOx, alcohol, Benzene, smoke, CO2, etc.
  • Analog output voltage: 0V to 5V
  • Digital output voltage: 0V or 5V (TTL Logic)
  • Preheat duration 20 seconds
  • Can be used as a digital or analog sensor

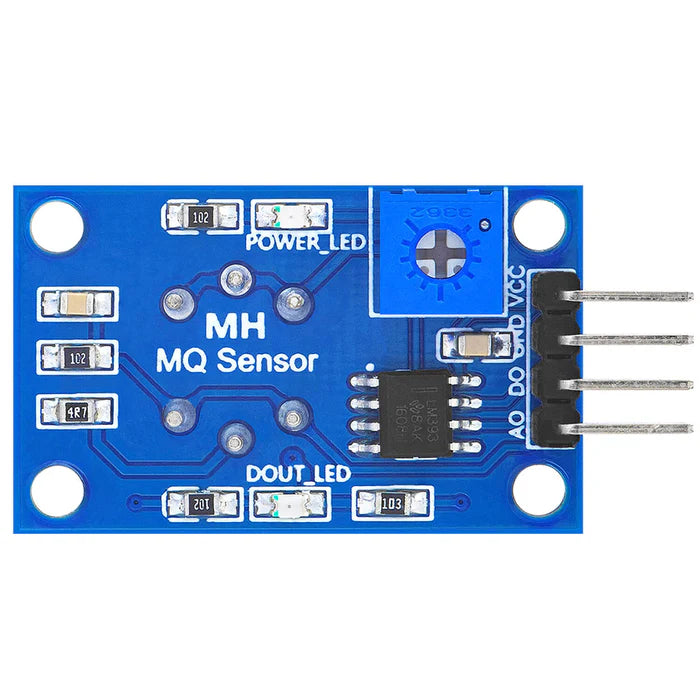

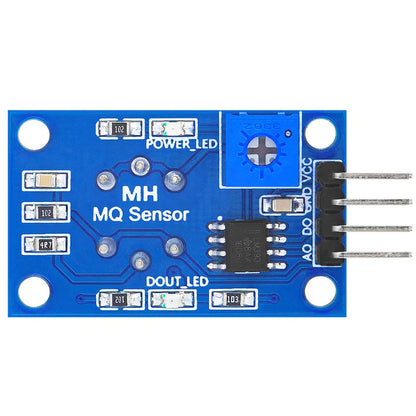

  • The Sensitivity of digital output can be adjusted using the onboard potentiometer
  • The TTL output valid signal is low. (When the output is low, the signal light is on, it can be directly connected to the MCU or relay module)
  • The voltage of the analog output, the higher the concentration, the higher the voltage.
  • Arduino compatible
  • Detection of gas: Ammonia /Sulfide/ Benzene vapor
  • Detection of Concentration:10-1000ppm
  • Power consumption (current): 150mA
  • AO output: 0.1-0.3V (relatively non-polluting), the highest concentration voltage is about 4V.

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
