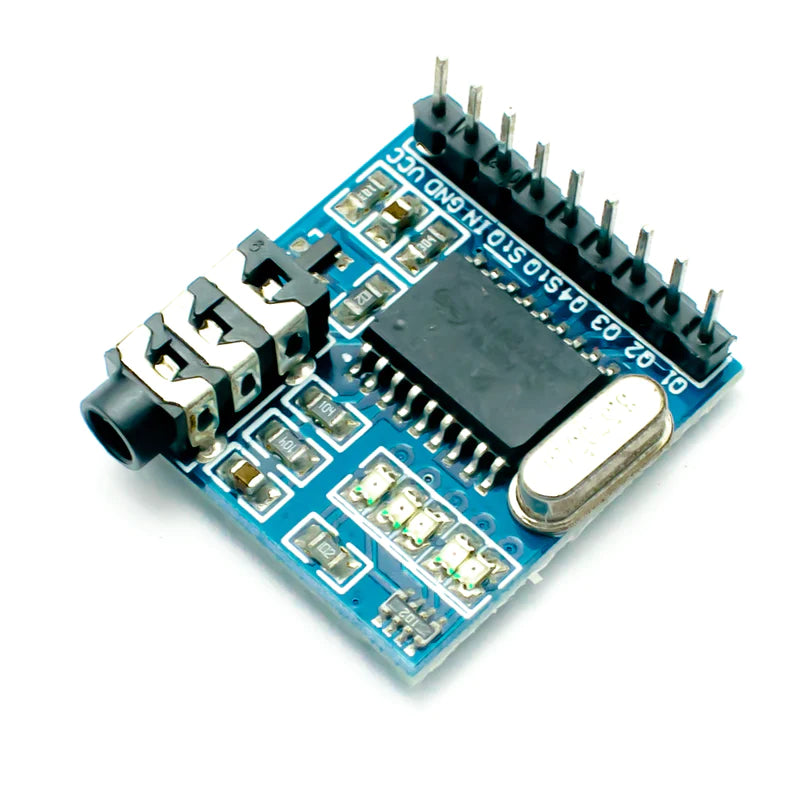

MT8870 DTMF Decoder Module

MT8870 DTMF Decoder Module

Description The MT8870 DTMF Decoder Module is a small module based on the MT8870 DTMF decoder IC. A 3.5mm audio connector is provided for connecting an audio source to the...
29 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2776
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

The MT8870 DTMF Decoder Module is a small module based on the MT8870 DTMF decoder IC. A 3.5mm audio connector is provided for connecting an audio source to the module. The audio source's DTMF signal is decoded, and the module's digital outputs indicate which key was pressed. You can connect a phone to the module, and the module will emit the key pressed on the audio source (0-9, *, #, A, B, C, or D). This module can be used in modems, mobile radios, and other DTMF-related applications. It may be used to create mobile-controlled robots, home automation projects, and IVR-style applications, among other things.

This MT8870 DTMF Decoder Module is suitable for incorporating DTMF (dual tone multi-frequency) decoding into your project. This detecting module decodes the incoming tone and outputs a coded signal that may be used with a variety of microcontrollers.
The MITEL firm invented the MT8870 Tone Decoder, which is a type of widely used multi-frequency decode IC. It's a full-featured DTMF receiver. After receiving the DTMF signal, it divides it into high-frequency and low-frequency groups before sending it to the digital decoder, which determines the key-value and sends it to the outside Bus through four lines (Q1, Q2, Q3, Q4) in binary form.

SPECIFICATIONS
Main IC MT8870DS
Operating Voltage 5V DC
Power Consumption 500mW
Operating Current 10mA
PCB Size 26.6x25.2mm
