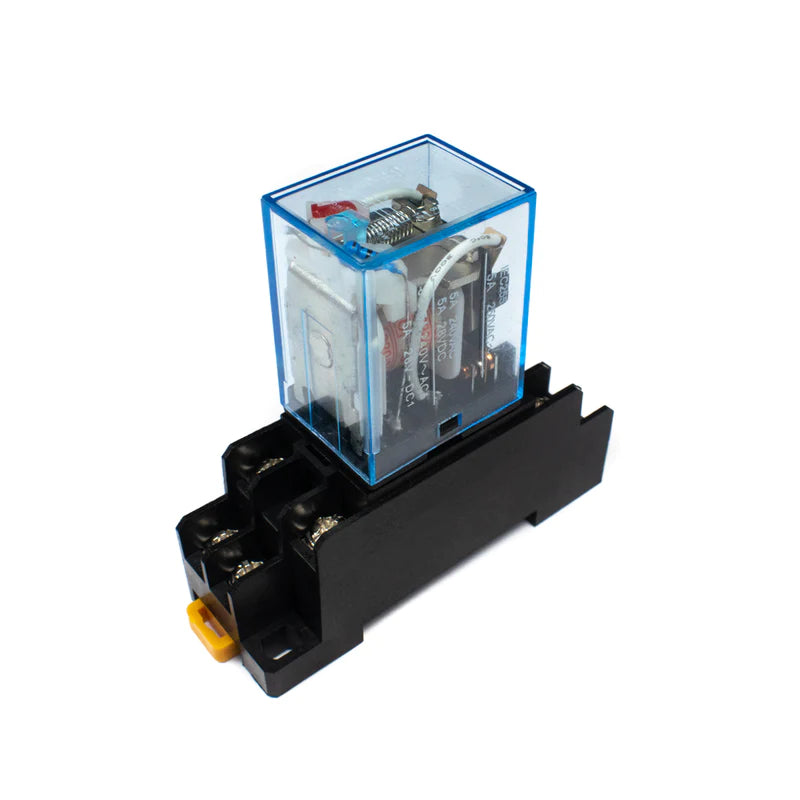

It is a MY2N-J 2A 8 Pin Power Relay. It is a general purpose power relay. This is a dual in line package through hole. This type power relay generally use in low voltage application that are dc powered.
| Relay Model | MY2N-J |
| Rating | 5A 250V AC, 5A 28V DC |
| Contact Resistance | ≤50mΩ |
| Insulator Resistance | ≥100MΩ |
| Coil Rated Voltage | AC 6 to 240V, DC 6 to 220V |
| Coil Rated Power AC | 0.9VA to 1.2VA |
| Coil Rated Power DC | ≤0.9W |
| Number of Pins | 8 |
| Operating Temperature | -40°C to 60°C |
| Relay Size | 27x20.4x35mm |
| Socket Model | PYF08A |
| Size | 71x22.6x28.8mm |
