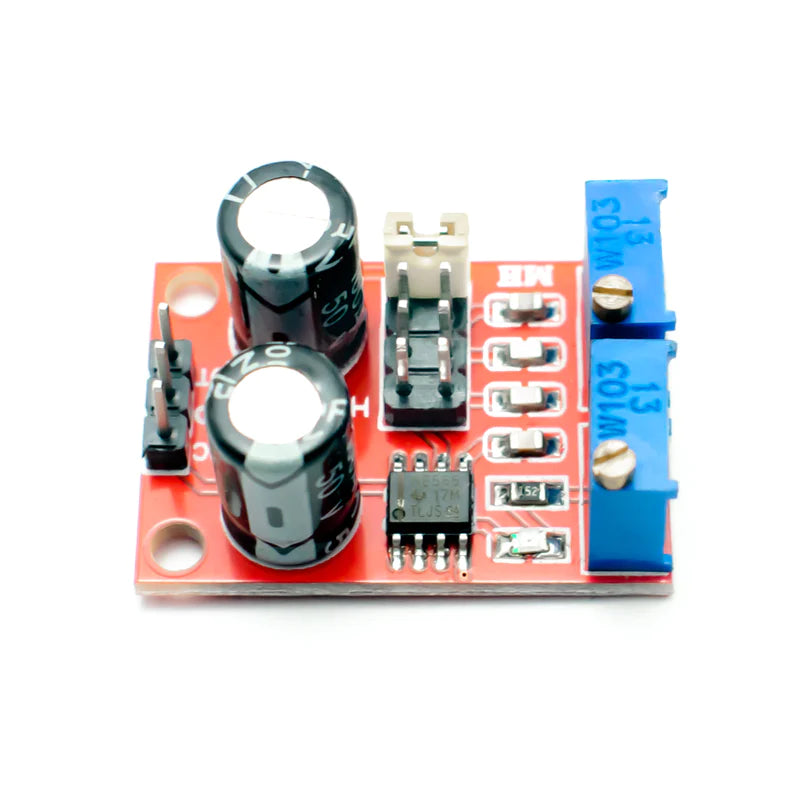

NE555 Pulse Frequency Duty Cycle Adjustable Module

NE555 Pulse Frequency Duty Cycle Adjustable Module

Description The NE555 Square Wave Signal Generator is a 5V square wave signal generator with adjustable pulse frequency and duty cycle. It produces a square wave signal that is used...
16 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2797
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

The NE555 Square Wave Signal Generator is a 5V square wave signal generator with adjustable pulse frequency and duty cycle. It produces a square wave signal that is used in research and development projects. Use to generate a square wave drive signal by driving a stepper motor. It is possible to fine-tune the output duty cycle. The duty cycle and frequency cannot be adjusted separately; changing the duty cycle will change the frequency.

SPECIFICATIONS
Main IC NE555
Input Voltage 5V-15V DC
Input Current ≥100mA
Output Amplitude 4.2V V-PP to 11.4V V-PP
Max. Output Current ≥15mA
Size 31x22.2x14.8mm
