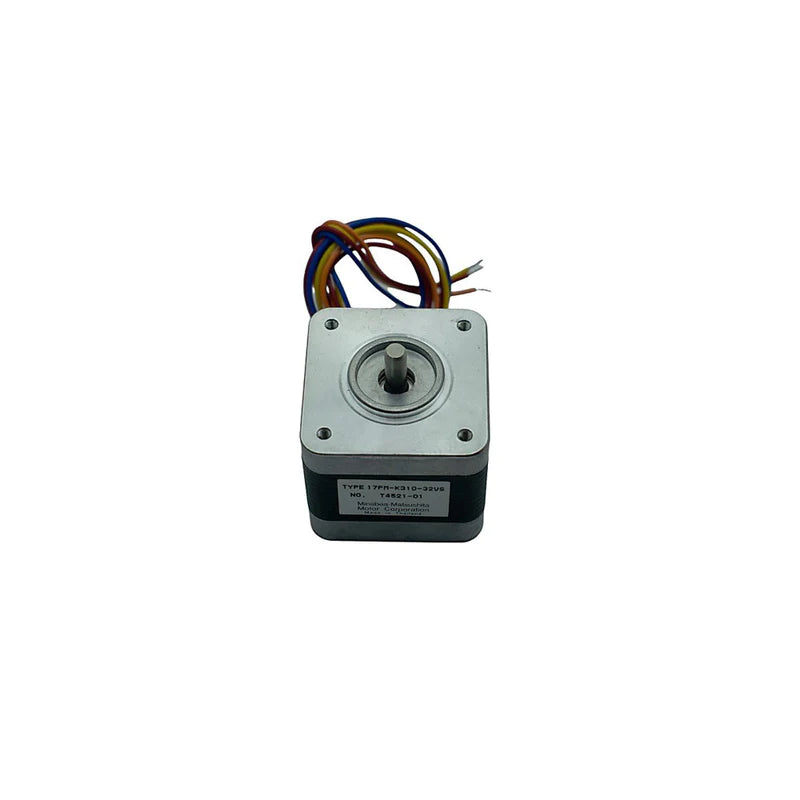

Nema 17 4 Kg-cm Bipolar Stepper Motor 10 mm Shaft for CNC Robotics DIY Projects 3D Printer

Nema 17 4 Kg-cm Bipolar Stepper Motor 10 mm Shaft for CNC Robotics DIY Projects 3D Printer

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description NEMA17 4Kgcm Stepper Motor for high torque applications. Ideal Motor for ATM machines, 3D printers, Peristaltic pumps and job positioning and rotating applications. Single side JST Connectors are provided...
15 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3859
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Motor
View full product details

Description

NEMA17 4Kgcm Stepper Motor for high torque applications. Ideal Motor for ATM machines, 3D printers, Peristaltic pumps and job positioning and rotating applications. Single side JST Connectors are provided with the motor.

Features:

  • Torque: 4 kg-cm
  • Current/Phase: 1.5A
  • Operating Voltage (VDC): 12 ~ 24 VDC
  • Step Angle: 1. 8 deg/step
  • Shaft Type: Round
  • Shaft Diameter: 5mm
  • Shaft Length: 10mm
SPECIFICATIONS
Torque  4 kg-cm
Step Angle 1. 8 deg/step
Current/Phase 1.5A
Rated Voltage 12-24 VDC
Number of Phase 2
Shaft Type Round
Shaft Diameter 5mm
Shaft Length 10mm
Motor Body Dimension (LxWxH) 42x42x36 (mm)
