Stepper motors are used in motion systems high precision positioning is required. Stepper motors can deliver direct and precise motions in a small volume due to their high power even at low speeds, stall torque, and ability to divide steps into micro-steps. Permanent magnet and hybrid technologies are used to provide a full range of solutions. The absence of mechanical commutation gives these motors a longer life which is usually given by the sleeves according to the load applied on the shaft.

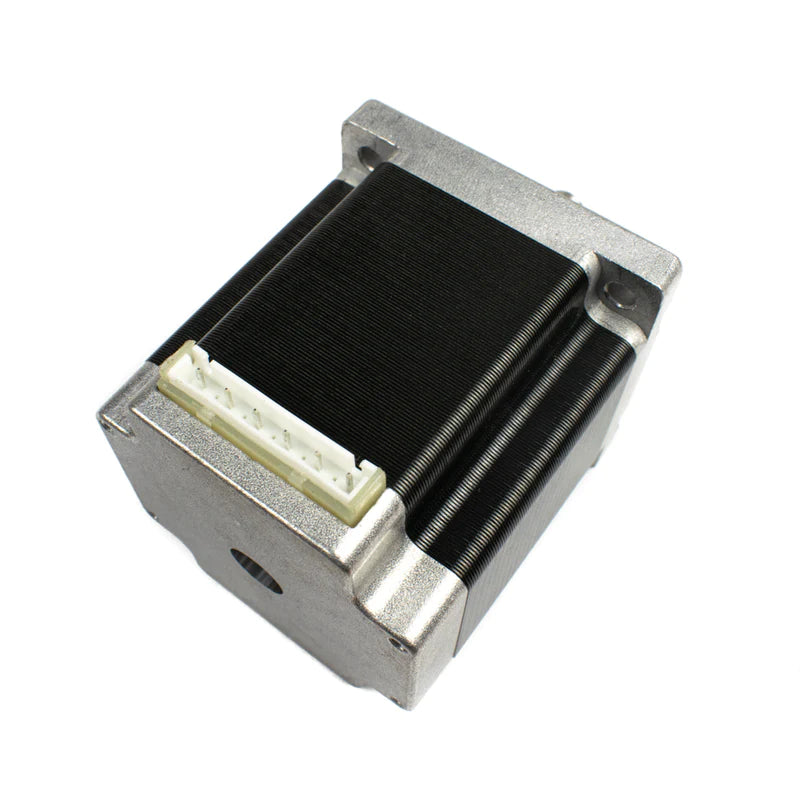

| Model | 60HS65-2804AF |
| Type | Bipolar |
| Rated Voltage | 3.36V |
| Step Angle | 1.8° |
| Rated Current per Phase | 2.8A |
| Resistance per Phase | 1.2 Ω ±10% |
| Inductance per Phase | 4.2 mH ±20% |
| Holding Torque | 2.1Nm |
| Rotor Inertia | 570gcm² |
| Weight | 1.030kg |
| No. of lead | 4 |
| Operating Voltage | 24-42VDC |
| Length | 65mm |
| Step Angle Accuracy | ±3 Arc Minute |
| Protection Class | DIN 40050-IP65 |
