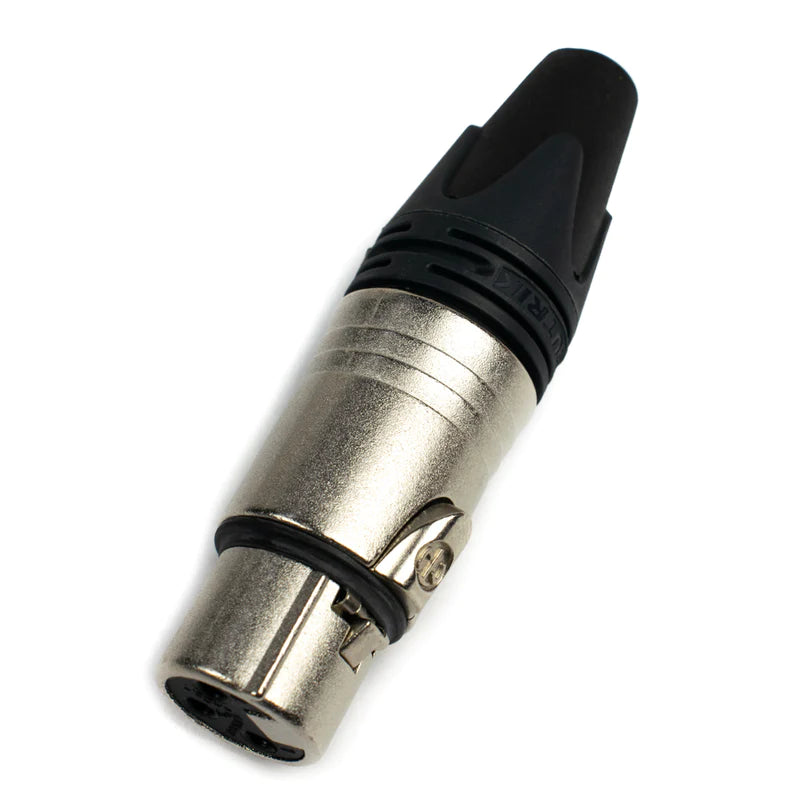

3 pole female cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features
| Model | NC3FXX |
| Connection Type | XLR |
| Capacitance Between Contacts | ≤4pF |
| Contact Resistance | ≤3mΩ |
| Dielectric Strength | 1.5kV DC |
| Insulation Resistance | >10GΩ |
| Rated Current per Contact | 16A |
| Rated Voltage | <50V DC |
| Size | 70x20.4mm |
| Cable Outer Diameter | 3.5-8.0mm |
| Insertion Force | ≤20N |
| Withdrawal Force | ≤20N |
| Lifetime | >1000 Mating Cycles |
| Wire Size | 2.5 Sq.mm (14 AWG) |
| Locking Device | Latch Lock |
| Boot Material | Polyurethan |
| Operating Temperature | -30°C to 80°C |
