Omron Power relay G4A-1A-PE 24DC

Omron Power relay G4A-1A-PE 24DC

Description The G4A-1A-PE 24DC is a 1-pole miniature Power PCB Relay with DC coil, G4A series. SPST-NO contact configuration, PCB terminals/PCB coil terminals. Capable of switching motor load of 80A...
16 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-4712
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Relay
View full product details

Description

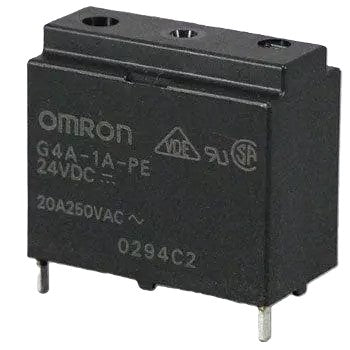

The G4A-1A-PE 24DC is a 1-pole miniature Power PCB Relay with DC coil, G4A series. SPST-NO contact configuration, PCB terminals/PCB coil terminals. Capable of switching motor load of 80A surge current and 20A switching/cut-off current. Relay with high switching power and long endurance. Highly noise-resistive insulation materials employed. Creepage distance conforms to UL and CSA standards.

  • Flux protection enclosure

Specification

  • Coil Voltage Rating (V) :- DC24
  • Mass (g) :- About 23
  • Return Voltage :- More than 10
  • Mechanical Durability :- 2 million times
  • Type :- Power relay
  • Contact Mechanism :- single
  • Coil Resistance :- 640 ± 10% (Coil temperature + 23 ℃)
  • Rated Voltage (V) :- 24 V
  • Return Time (ms) :- less than 10
  • Contact Resistance :- 100 or less (DC5V 1A voltage drop method)
  • Rated Carrying Current (A) :- 20
  • No. of Pole :- 1 Pole
  • Vibration Resistance (Endurance) :- 10 to 55 to 10 Hz, single amplitude 0.75 mm (double amplitude 1.5)
  • Insulation Resistance :- 1000 or more (with DC500V mega)
  • Operating Time (ms) :- 20 or less
  • Monotaro ID :- 39067515
  • Vibration Resistance (Mis-operation) :- 10 to 55 to 10 Hz, single amplitude 0.75 mm (double amplitude 1.5)
  • Operating Voltage :- 70% or less
  • Type of Product :- Power relay G4A
  • Contact Material :- Ag alloy (Cd-free material)
  • Shock Resistance :- 1000m/s<sup>2</sup>
  • Ambient Humidity to Use :- 5~85%RH
  • Power Consumption (W) :- 0.9
  • Maximum Switching Capacity :- 5000VA
  • Rated Current (mA) :- 37.5 ± 10% (Coil temperature + 23 ℃)
  • Withstand voltage (V / min) :- (Between coil and contact) AC4500 50 / 60Hz, (Between contacts of the same polarity) AC1000 50 / 60Hz
  • Operation Ambient Temperature :- -20 to +60 (with no icing or condensation)
  • Maximum Contact Voltage (V) :- AC250
  • Coil iNductance (H) / Steel Chip at Operating :- 4.8
  • Failure Rate P Level (Reference Value: at Switching Frequency 120 times/min) :- DC5V 100mA
  • Maximum Switching Frequency (times/h),Mechanical :- 18000
  • Coil iNductance (H) / Steel Chip at Opening :- 3.5
  • Maximum Allowable Voltage (V) :- 160%(at23℃)
  • Maximum contact current (A) :- 20
  • Impact Resistant Voltage (V) :- Between coil and contacts / 8.5k (1.2 × 50)
  • RoHS Directive :- 10 substances
  • Name of Manufacturer/Packer/Importer :- Omron Corporation

Application

Industrial, Power Management, Automation & Process Control, Consumer Electronics
