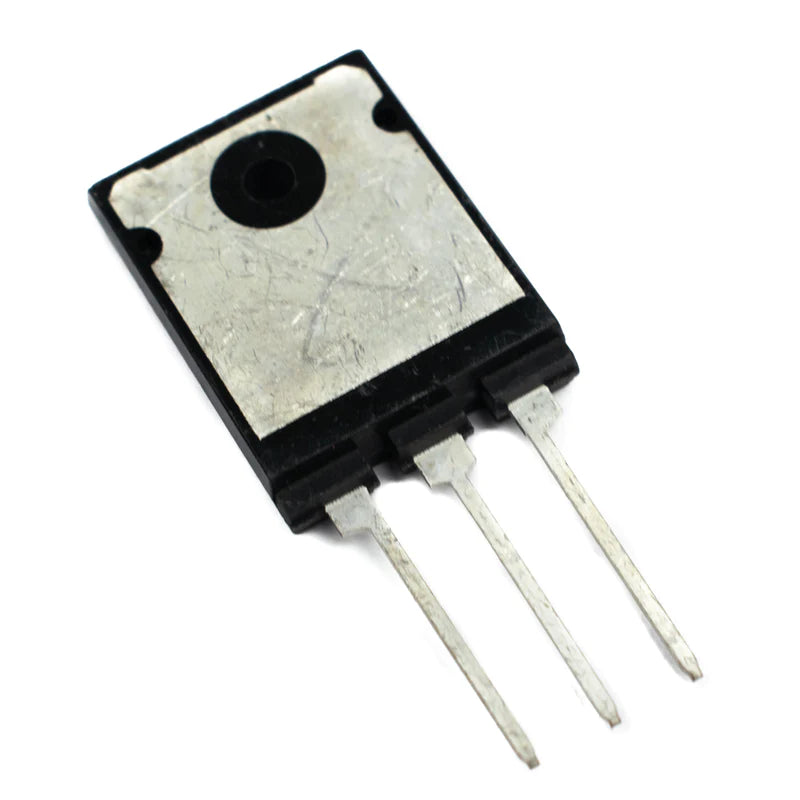

ONSEMI 40N120 1200V 40A IGBT Power Transistor

ONSEMI 40N120 1200V 40A IGBT Power Transistor

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description This Insulated Gate Bipolar Transistor (IGBT) has a sturdy and cost-effective Ultra Field Stop Trench construction. It provides excellent performance in demanding switching applications, with low on-state voltage and...
20 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3568
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Power Transistor
View full product details

Description

This Insulated Gate Bipolar Transistor (IGBT) has a sturdy and cost-effective Ultra Field Stop Trench construction. It provides excellent performance in demanding switching applications, with low on-state voltage and reduced switching loss. The IGBT is ideal for use in UPS and photovoltaic applications. A free-wheeling diode with a low forward voltage is also present. Fairchild's AND series of IGBTs uses NPT technology to produce reduced conduction and switching losses. The AND series provides a solution for induction heating (IH), motor control, general-purpose inverters, and uninterruptible power supplies (UPS)

Features
  • High-speed switching
  • Low saturation voltage : VCE(sat)= 2.6 V @ IC= 40A
  • High input impedance
  • CO-PAK, IGBT with FRD : trr= 75ns (typ.)
Applications
  • Induction Heating, UPS, AC & DC motor controls and general
SPECIFICATIONS
Model FGL40N120AND
Brand FSC/ONSEMI
Channel Type N Channel
Max. Collector-Emitter Voltage 1200V
Collector-Emitter Saturation Voltage 2.6V
Max. Gate-Emitter Voltage 25V
Max. Collector Current 64A
Max. Junction Temperature 150°C
Max Power Dissipation 500W
Rise Time 20ns
Package TO-264
