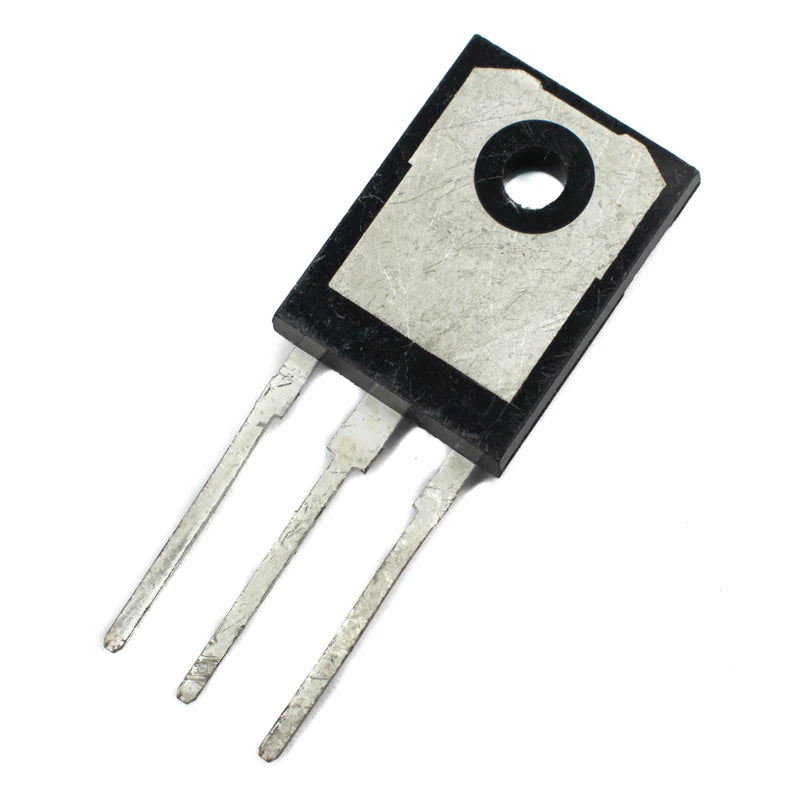

ONSEMI 40N60 600V 40A IGBT TO-247

ONSEMI 40N60 600V 40A IGBT TO-247

₹ 0.00
₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description Description Using Novel Field Stop IGBT Technology, ON Semiconductor’s new series of Field Stop IGBTs offer the optimum performance for Automotive Chargers, Inverter, and other applications where low conduction...
23 people are viewing this right now

Availability: In stock

SKU: ATC-3576
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Power Transistor
View full product details

Description

Description

Using Novel Field Stop IGBT Technology, ON Semiconductor’s new series of Field Stop IGBTs offer the optimum performance for Automotive Chargers, Inverter, and other applications where low conduction and switching losses are essential.

Features

  • High Current Capability
  • Low Saturation Voltage: VCE(sat) = 2.3 V @ IC = 40 A
  • High Input Impedance
  • Fast Switching
  • Qualified to Automotive Requirements of AEC−Q101 (FGH40N60SFDTU−F085)
  • These Devices are Pb−Free and are RoHS Compliant

Applications

  • Automotive Chargers, Converters, High Voltage Auxiliaries
  • Inverters, PFC, UPS

Datasheet

SPECIFICATIONS
Model FGH40N60SFD
Brand Onsemi/FSC
Collector to Emitter Voltage 600V
Gate to Emitter Voltage 20V
Transient Gate−to−Emitter Voltage 30V
Collector Current 40 C-80 C
Pulsed Collector Current 120A
Operating Junction Temperature -55°C - 150°C
Power Dissipation 160W-290W
Package TO-247
