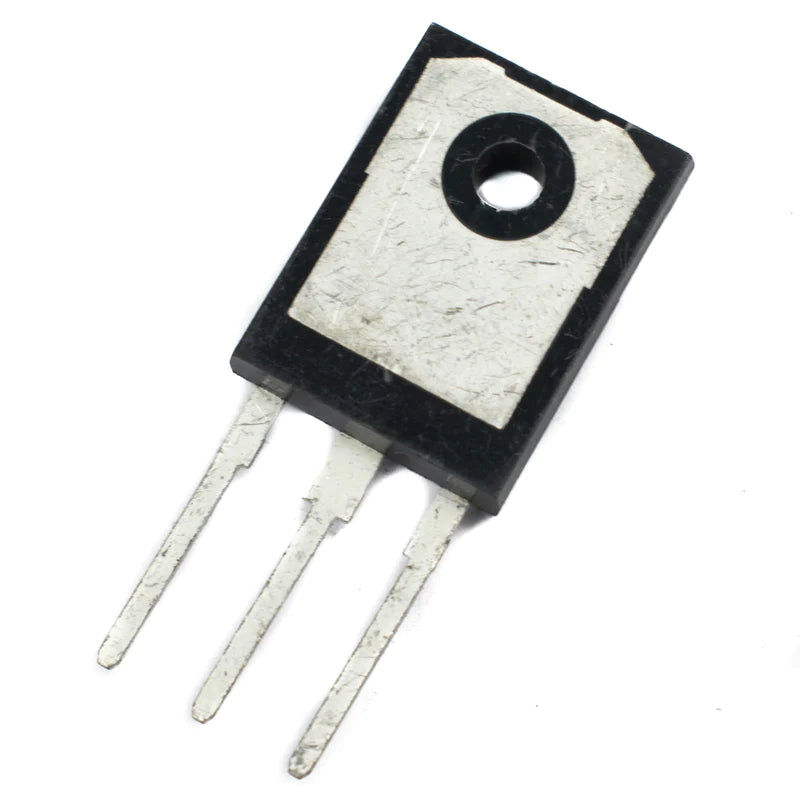

ONSEMI FGH40T120SMD 1200V 40A IGBT - Field Stop Trench

ONSEMI FGH40T120SMD 1200V 40A IGBT - Field Stop Trench

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description Using innovative field stop trench IGBT technology, ON Semiconductor’s new series of field stop trench IGBTs offer the optimum performance for hard switching applications such as solar inverter, UPS,...
20 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3569
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Power Transistor
View full product details

Description

Using innovative field stop trench IGBT technology, ON Semiconductor’s new series of field stop trench IGBTs offer the optimum performance for hard switching applications such as solar inverter, UPS, welder and PFC applications.

Datasheet

Features

  • FS Trench Technology, Positive Temperature Coefficient
  • High-Speed Switching
  • Low Saturation Voltage: VCE(sat) = 1.8 V @ IC = 40 A
  • 100% of the Parts Tested for ILM(1)
  • High Input Impedance
  • These Devices are Pb−Free and are RoHS Compliant

Applications

  • Solar Inverter, Welder, UPS & PFC applications
SPECIFICATIONS
Model FGH40T120SMD,
Brand  FSC/ONSEMI
Collector to Emitter Voltage 1200V
Collector Current 40A @ 100°C
Max. Power Dissipation 277W
Max. Operating junction Temperature 175°C
Package TO-247
