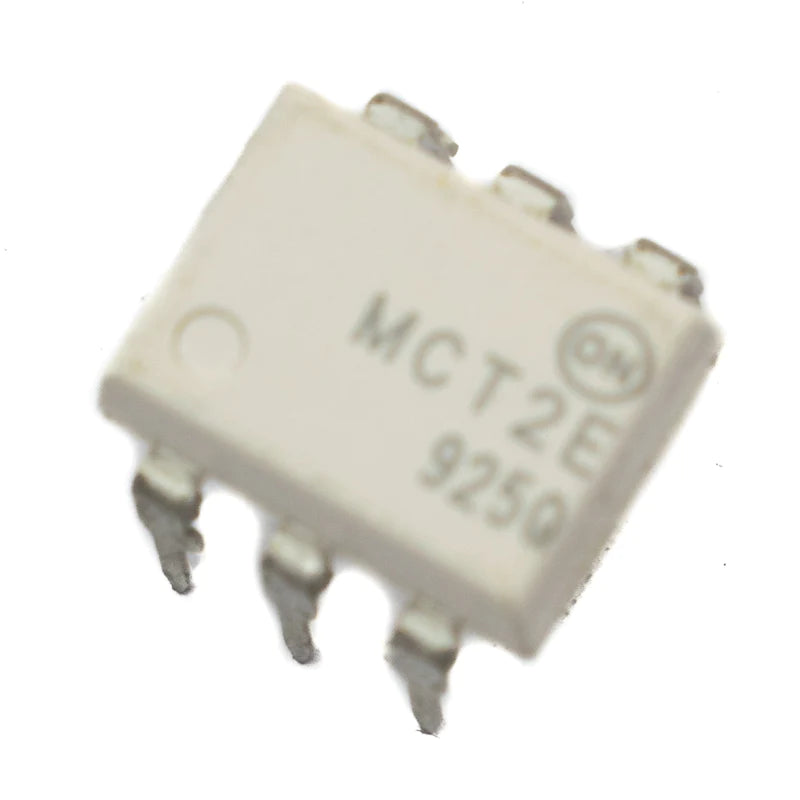

ONSEMI MCT2E IC - Optocoupler - 6 Pin DIP

ONSEMI MCT2E IC - Optocoupler - 6 Pin DIP

Description The MCT2E series optoisolators consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package Features High Isolation voltage between input and...
23 people are viewing this right now

Availability: Out of stock

Ask For Price
SKU: ATC-4173
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Optocoupler IC
View full product details

Description

The MCT2E series optoisolators consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package

Features

  • High Isolation voltage between input and output (Viso = 5000V RMS)
  • Creepage distance > 7.6mm
  • Operating temperature up to +100°C
  • Compact dual-in-line package
  • Packed in tube or tape and reel
  • The conventional black housing package

Applications

  • General-purpose switching circuits
  • Interfacing and coupling systems of different potentials and impedances
  • I/o interfacing
  • Solid-state relays
  • Monitor and detection circuits
Specifications
Model MCT2E
Brand ONSEMI
Transistor Type PHOTOTRANSISTOR OPTOCOUPLER
Material Silicone
Storage Temperature -55°C to +150°C
Isolation Voltage 5000V
Continuous Forward Current 60mA
No. of Pins 6 pins
Peak Forward Current 1A
Max. Operating Junction Temperature 100°C
Reverse Voltage 6V
Collector–Emitter Voltage 80V
Max. Power Dissipation 200nW
Package DIP
Mounting Through Hole
