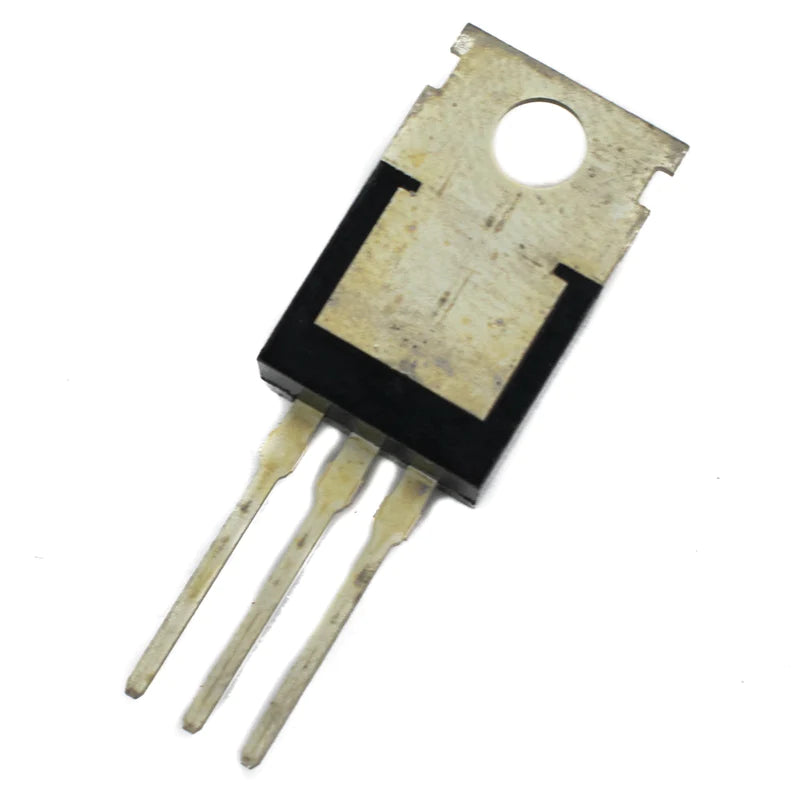

ONSEMI MJE13007 Switch-mode NPN Bipolar Power Transistor

ONSEMI MJE13007 Switch-mode NPN Bipolar Power Transistor

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The MJE13007 is designed for high−voltage, high−speed power switching inductive circuits where fall time is critical. It is particularly suited for 115 and 220 V switch−mode applications such as...
19 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3579
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Power Transistor
View full product details

Description

The MJE13007 is designed for high−voltage, high−speed power switching inductive circuits where fall time is critical. It is particularly suited for 115 and 220 V switch−mode applications such as Switching Regulators, Inverters, Motor Controls, Solenoid/Relay drivers and Deflection circuits.

Features

  • SOA and Switching Applications Information
  •  Standard TO−220
  •  These Devices are Pb−Free and are RoHS Compliant*
  •  Complementary to the MJE5850 through MJE5852 Series.

Datasheet

SPECIFICATIONS
Product Series MJE13007
Brand FSC/ONSEMI
Package TO-220
Maximum Collector−Emitter Sustaining Voltage 400V
Maximum Collector−Base Breakdown Voltage 700V
Maximum Emitter−Base Voltage 9V
Maximum Collector Current − Continuous 8 A
Maximum Base Current − Continuous 4 A
Maximum Emitter Current Continuous 12A
