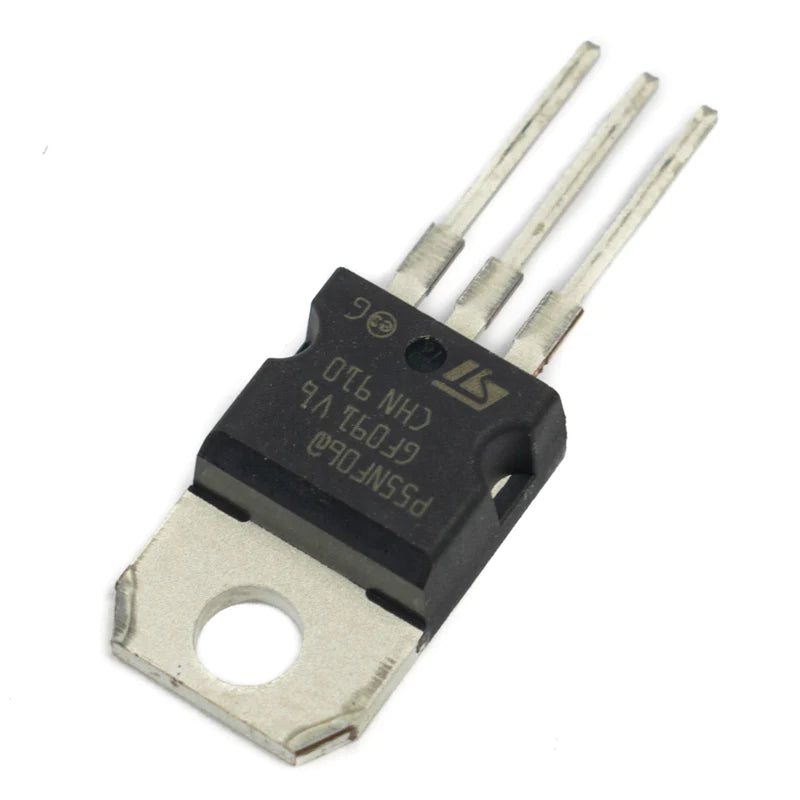

P55NF06 MOSFET - 60V 50A N Channel Power MOSFET

P55NF06 MOSFET - 60V 50A N Channel Power MOSFET

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The P55NF06 is an N-channel MOSFET with a high drain current of 50A and a low Rds value of 18 mΩ. It also has a VGS of 20V at...
25 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3702
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

The P55NF06 is an N-channel MOSFET with a high drain current of 50A and a low Rds value of 18 mΩ. It also has a VGS of 20V at which the MOSFET will start conducting. Hence it is commonly used to drive applications. However, a driver circuit is needed if the MOSFET has to be switched in completely

Features:

  • Its N-Channel MOSFET
  • It is mainly suitable electronic ballast, and low power switching mode power appliances.
  • Its Vds is 60V
  • Its Rds is 18mOhm

Specifications:

Part Number P55NF06
 Polarity N-Channel
Drain Source Breakdown Voltage(Vds) 60v
Continuous Drain Current(Id) 50A
Drain Source Resistance(Rds) 18mOhm
Gate Source Voltage 20V
Power Dissipation (Pd) 110
Package TO-220
Operating Temperature Range -55 - 175°C
