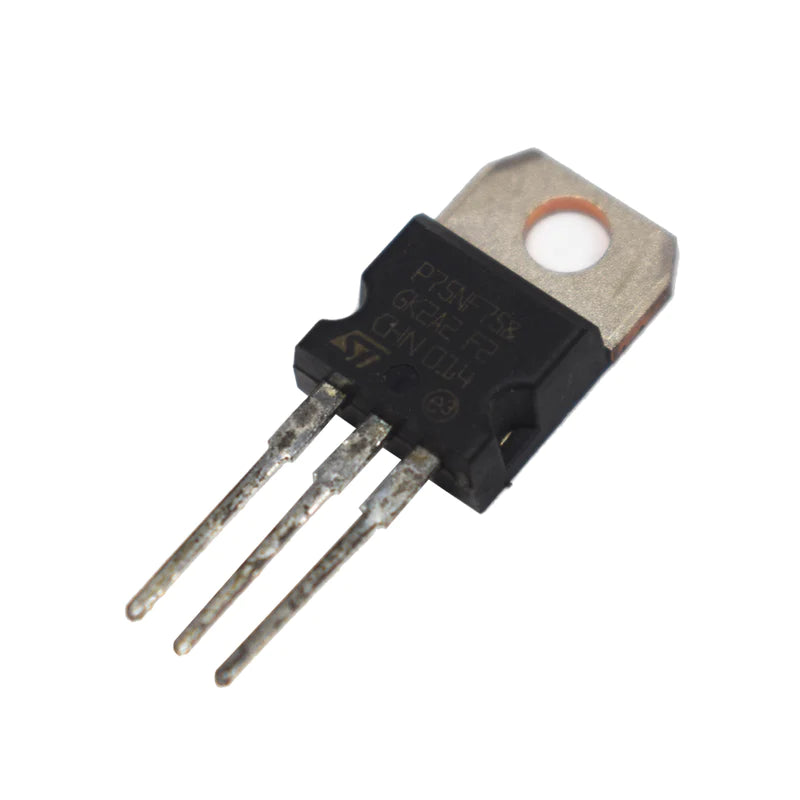

P75NF758 is an N channel power MOSFET its maximum operating voltage is 75V and the forward current is 80A.This Power MOSFET series was created using STMicroelectronics' exclusive S Trip FET process, and it was specifically created to reduce gate charge and input capacitance. In modern, high-efficiency, high-frequency isolated DC-DC converters for telecom and computer applications, it is thus an appropriate primary switch. It is also designed to be used in situations that just need a small gate drive.
Features
Drain to source voltage : VDSS = 75 V
Gate to source voltage : VGSS = ± 20 V
Drain current : ID = 80 A
Storage temperature : -55 to +175 °C
| Model | P75NF758 |
| Type | MOSFET |
| Package | TO-220 |
| Forward current | 80A |
| Voltage | 75V |
| Brand | STMicroelectronics |
| Absolute temperature | 25°C |
| Operating and Storage Temperature Range | -55°C TO 175°C |
