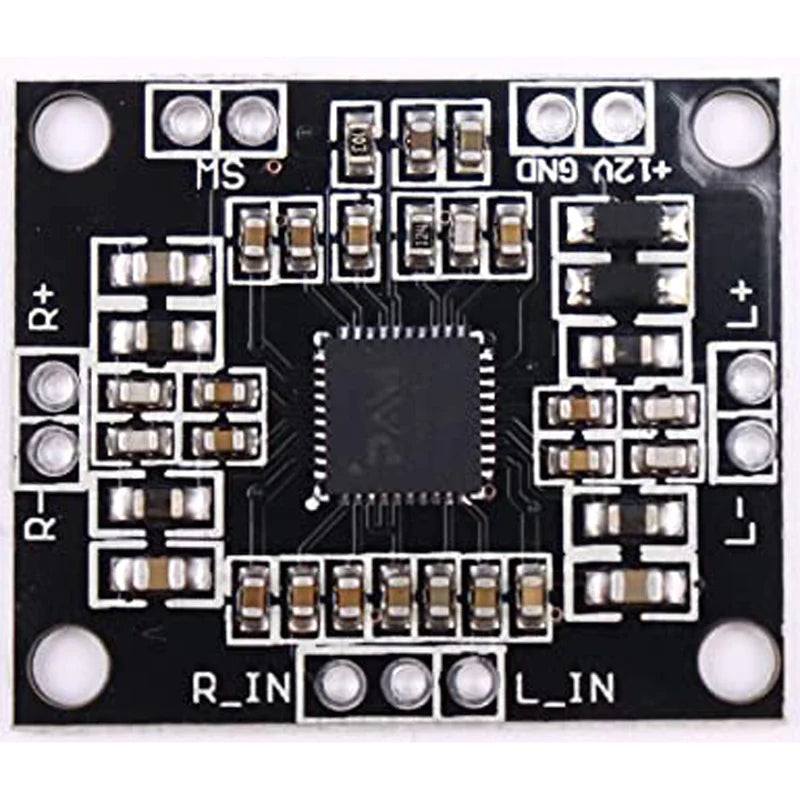

The PAM8610 is a 15W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a +32dB to -75dB range. The PAM 8610 runs on a 7V to 15V supply at a much higher efficiency than competitors’ ICs. The PAM8610 amplifier only requires very few external components, significantly saving cost and board space. This 2x15W Two-Channel Stereo Class-D Amplifier is available in a 40 pin QFN 6 x 6 mm package.
| IC | PAM8610 |
| Input Voltage | 7-15 V |
| Working Mode | Class D (PWM modulation type) |
| Power (W) | 15W |
| Dimension(LxW) | 30.5x25.5 (mm) |
