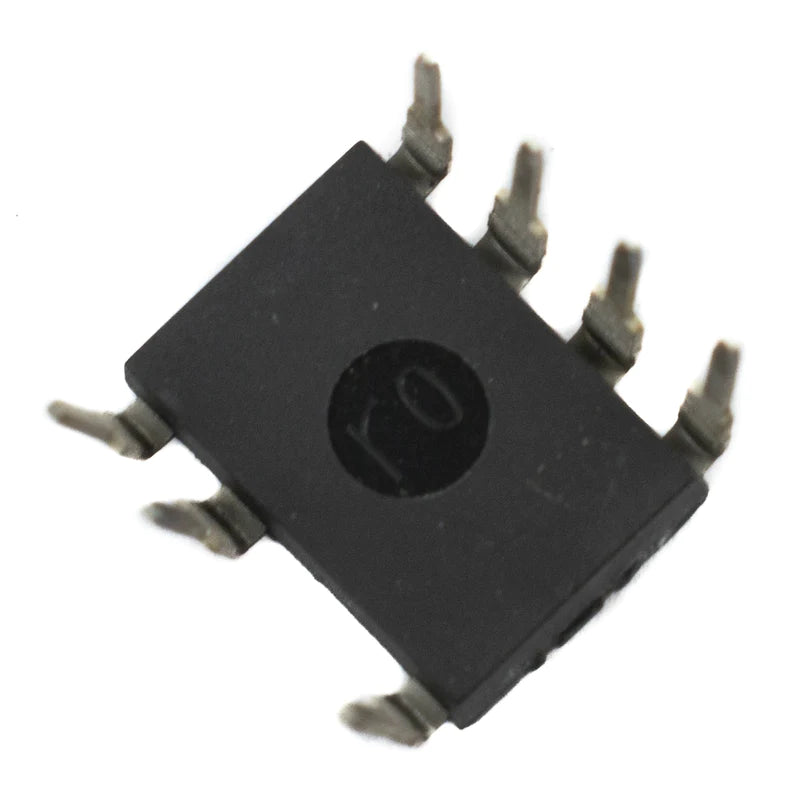

MIP2K3, MIP2Kx series is a high-performance IPD designed for 15W battery chargers and featuring built-in frequency jitter function at PWM control. It features built-in protection circuits necessary for compact power source charger circuitry. This allows a significant reduction in externally connected parts. It provides PWM control when a normal load is applied and intermittent control with low load. This results in greater efficiency for very low to maximum loads, while also conserving power during standby.
Features
Applications
| Model | MIP2K3 |
| Brand | PANASONIC |
| Output | Up to 10W |
| VDSS | 700V |
| I LIMIT | 0.50A |
| R(DS)ON | 10ohm |
| fosc | 100kHz |
|
∆f
|
5.5kHz
|
|
fM
|
260Hz |
| Analog IC - Other Type | BATTERY CHARGE CONTROLLER |
| Control Technique |
PULSE WIDTH MODULATION |
|
Number of Terminals |
7 |
| Package | DIP |
| Mounting | Through Hole |
