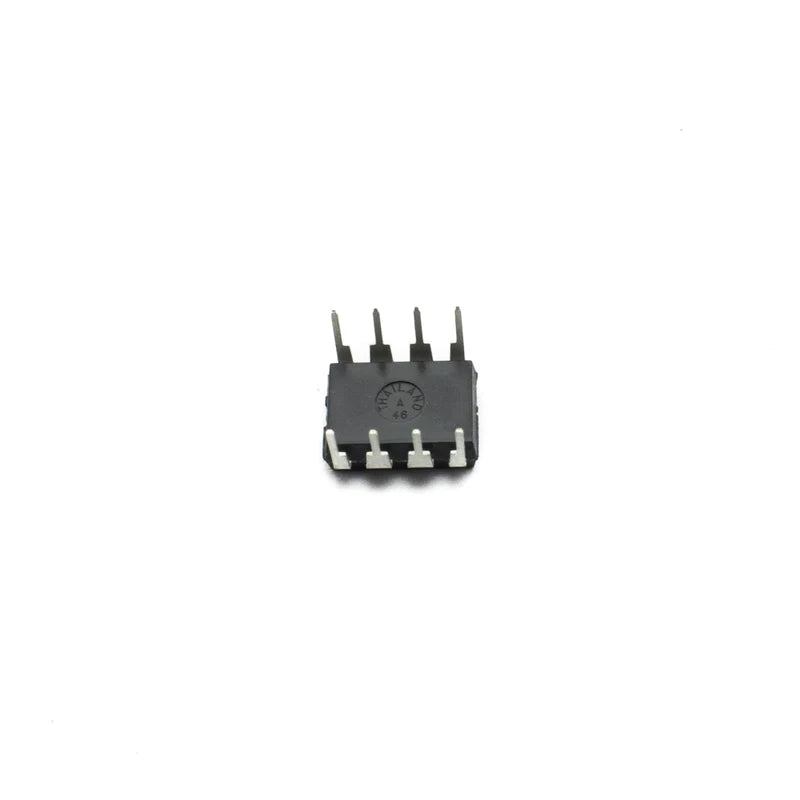

PIC12F675 is an 8-Bit CMOS Microcontroller made by MICROCHIP TECHNOLOGY and is developed on high-performance RISC architecture. Because of its low cost and tiny size, this microcontroller is particularly popular among amateurs and engineers. The PIC12F675 microcontroller is intended for low-end applications and systems. Engineers will benefit from its high flash memory rewrite cycle for learning and experimentation. The controller features 2KBytes of flash memory, which is sufficient for beginners to create simple applications. Furthermore, the 6 GPIO pins are intended to handle a maximum current of 25mA, which is sufficient for many peripheral devices and sensors.
| CPU | 8-bit |
| Total number of pins | 8 |
| Programmable pins | 6 |
| Communication Interface | ICSP or In-Circuit Serial Programming Interface (13,14 Pins) [Can be used for programming this controller] |
| ADC Feature | 4 channels of 10-bit resolution |
| Timer Feature | One 8-bit counter, One 16-bit counter |
| PWM channels | Not available |
| Analog Comparator | Available-1 |
| External Oscillator | Up to 20MHz |
| Internal Oscillator | 4MHz Internal R-C Oscillator factory calibrated to ±1% |
| Program memory / Flash memory | 2Kbytes[100000 write/erase cycles] |
| CPU Speed | 1MIPS @ 1MHz |
| Watchdog Timer | Available and is featured with Independent Oscillator for Reliable Operation |
| Power Save Modes | Available |
| Operating Voltage | 2.0V to 5.5V |
| Maximum current to any I/O pin | IN:25mAOUT: 25mA |
| Operating Temperature | -40°C to +125°C |
| Maximum current into VDD pin | 250mA |
| Dimensions | 9.6x8.2x3.3mm |
