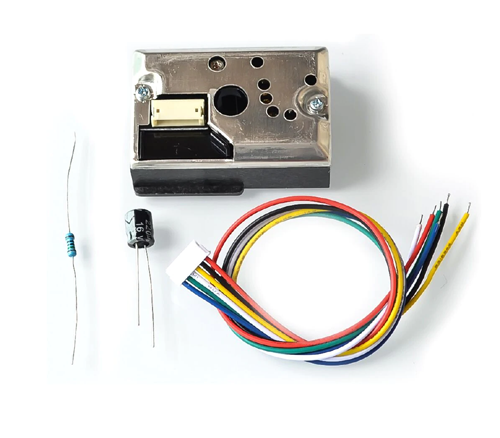

PM2.5 GP2Y1014AUOF Dust Smoke Particle Sensor

PM2.5 GP2Y1014AUOF Dust Smoke Particle Sensor

Regular price ₹ 450.00
Regular price ₹ 470.00 Sale price ₹ 450.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The Sharp Optical Dust Sensor (GP2Y1010AU0F) is especially effective in detecting very fine particles like cigarette smoke and is commonly used in air purifier systems. An infrared emitting diode...
17 people are viewing this right now

AvailabilityIn stock

SKU: ATC-4792
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

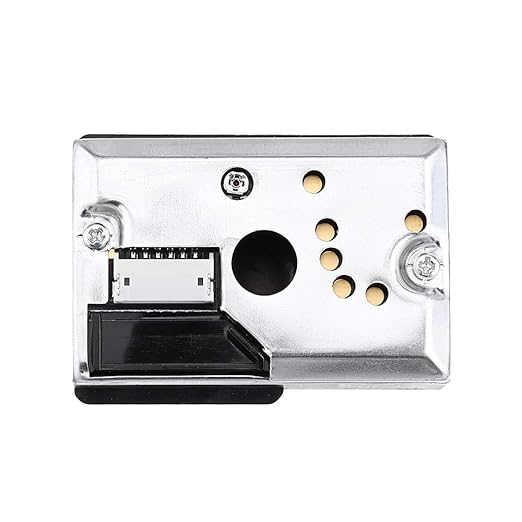

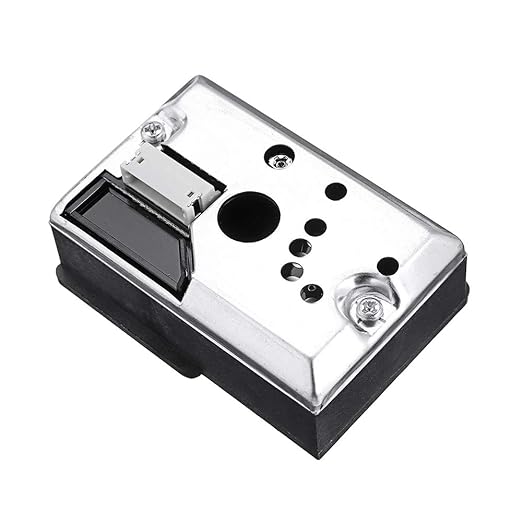

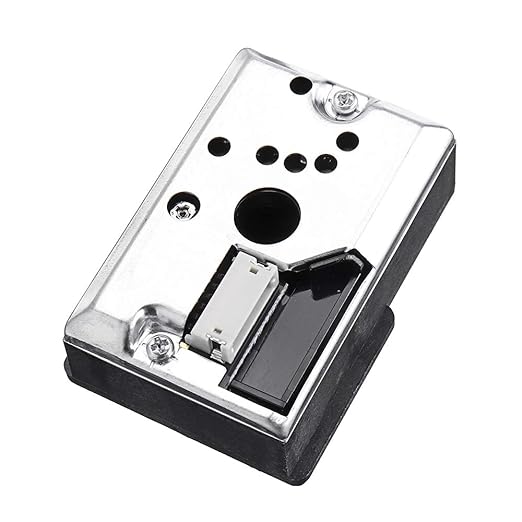

The Sharp Optical Dust Sensor (GP2Y1010AU0F) is especially effective in detecting very fine particles like cigarette smoke and is commonly used in air purifier systems. An infrared emitting diode and a phototransistor are diagonally arranged into this device, to allow it to detect the reflected light of dust in the air.

The sensor has a very low current consumption (20mA max, 11mA typical), and can be powered with up to 7VDC. The output of the sensor is an analog voltage proportional to the measured dust density, with a sensitivity of 0.5V/0.1mg/m3.

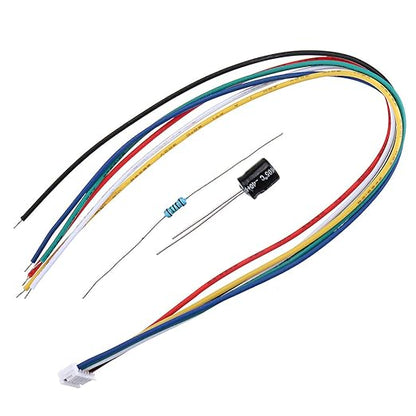

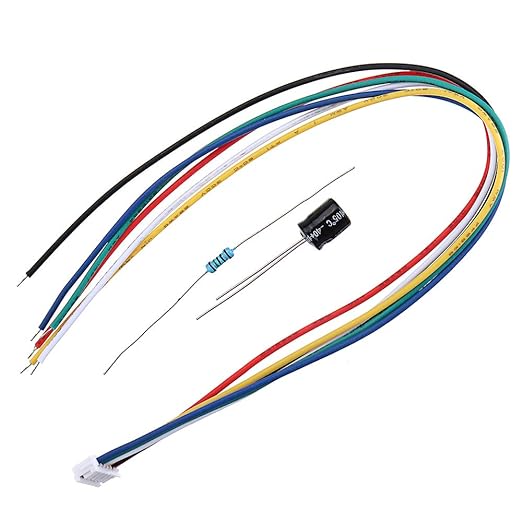

For your convenience, ITEAD ship this sensor with a 6-pin, 1.5mm pitch mating connector, and cable.

Features

  • Accurate dust detection: The GP2Y1010AU0F is a precise optical air quality sensor capable of detecting dust particles with a minimum size of 0.5 µm. This ensures that even the smallest dust particles do not go unnoticed.
  • Wide range of dust density: This sensor can measure dust densities up to 580 µg/m³, which is ideal for monitoring air quality in various environments and applications.
  • Versatile applications: This module is versatile and suitable for various applications, from automation, home automation and robotics to environmental and industrial monitoring.
  • STEM project: Develop and improve your STEM skills and acquire the knowledge, skills and experience needed to face the technological challenges of the future with this educational kit. This educational kit will trigger several processes such as problem-solving, investigative and creative thinking.

Specifications

  • Power Supply Voltage: DC5 ± 2V
  • Operating Current: 20mA (peak)
  • Sensitivity: 0.5V / (0.1mg / m3)
  • Minimum Detection Level of Particles: 0.8 m
  • Clean Air Voltage: 0.9V type
  • Working Temperature: -10 ~ 65°C
  • Storage Temperature: -20 ~ 80°C

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
