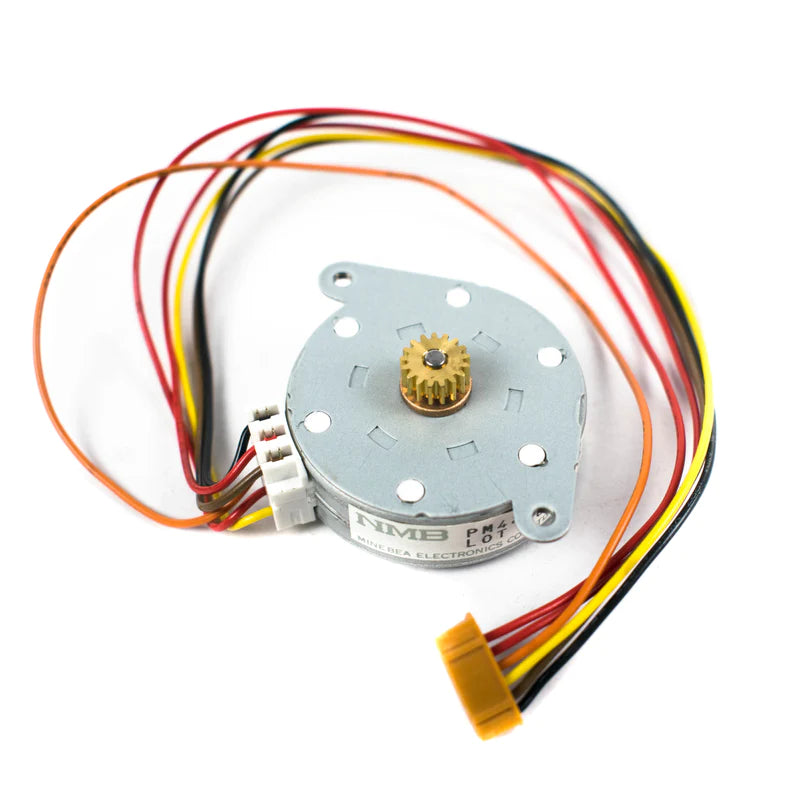

PM42S-048 Bipolar Stepper Motor

PM42S-048 Bipolar Stepper Motor

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The PM42S-048 is a tiny 2-2 PHASE stepper motor with 48 steps per rotation and an operating voltage of 24v 600ma. It offers adequate torque to move small robots...
18 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3842
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Motor
View full product details

Description

The PM42S-048 is a tiny 2-2 PHASE stepper motor with 48 steps per rotation and an operating voltage of 24v 600ma. It offers adequate torque to move small robots and comes with a gear shaft.

Application

  • OA Equipment: Printer/Scanner
  • Industrial Equipment: Flow control valve
  • Vending Machines
  • Sewing machine, Blind slider
SPECIFICATIONS
Model PM42S-048-ZZV9
Operating Voltage 24V DC
Max. Operating Current 600mA
Number of Steps per Rotation 48(7.5°/step)
Coil Resistance 11.3Ω
Phase 2-2
Type Bipolar
Holding Torque 66mNm
Size 42x47x22mm
