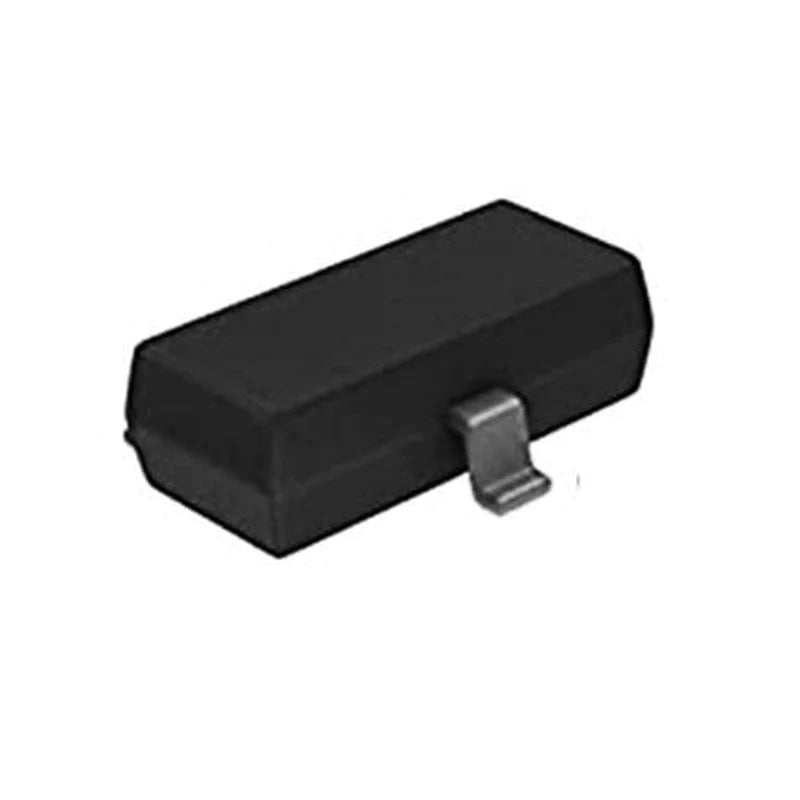

PMBT2222A NPN Transistor SMD SOT-23

PMBT2222A NPN Transistor SMD SOT-23

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description PMBT2222A is an NPN switching transistor in a small SOT23 (TO-236AB) Surface-mounted Device (SMD) plastic package. Generally used for switching and linear amplification. Features High current (max. 600 mA) ...
22 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3534
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

PMBT2222A is an NPN switching transistor in a small SOT23 (TO-236AB) Surface-mounted Device (SMD) plastic package. Generally used for switching and linear amplification.

Features

  • High current (max. 600 mA)
  • Low voltage (max. 40 V)
  • AEC-Q101 qualified
SPECIFICATIONS
Part Number PMBT2222A
Manufacturer Nexperia
Package / Case SOT-23-3
Collector- Base Voltage VCBO 75 V
Collector-Emitter Voltage VCEO Max 40 V
Collector-Emitter Saturation Voltage 1 V
Configuration Single
Emitter- Base Voltage VEBO 6 V
Gain Bandwidth Product fT 300 MHz
Maximum DC Collector Current 600 mA
Maximum Operating Temperature + 150 C
Minimum Operating Temperature - 65 C
Mounting Style SMD/SMT
Packaging Reel
Pd - Power Dissipation 250 mW
Product Type BJTs - Bipolar Transistors
Technology Si
Transistor Polarity NPN
