Portable RC3563 100V IR Tester

Portable RC3563 100V IR Tester

Regular price ₹ 6,300.00
Regular price ₹ 6,800.00 Sale price ₹ 6,300.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The internal resistance tester can measure the internal resistance and voltage of the battery at the same time. It adopts kelvin four-wire test clip, which can avoid the influence...
24 people are viewing this right now

AvailabilityIn stock

SKU: ATC-4662
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Measuring Instruments
View full product details

Description

The internal resistance tester can measure the internal resistance and voltage of the battery at the same time. It adopts kelvin four-wire test clip, which can avoid the influence of contact resistance and wire resistance, and can make more accurate measurement. This product adopts intelligent control, liquid crystal display screen, at the same time implanted kalman filter mathematical algorithm, with high precision, high efficiency, low cost, light weight, energy saving and environmental protection and other advantages. Built-in 1000mah lithium battery, 5V charging, android phone charger can be used, very convenient. SI-IRP-3563 added serial communication function, free to provide powerful computer analysis software.

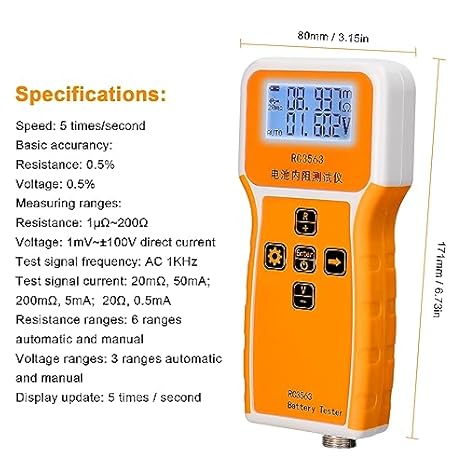

Specifications

  • Speed : 5 times/second
  • Resistance : 0.5%
  • Voltage : 0.5%
  • Resistance : 1uQ~2009
  • Voltage : 1mV~#100V direct current
  • Test signal frequency : AC 1KHz
  • Tesi signal current : 20mg, 50mA; 200m, 5mA; 200, 0.5mA
  • Resistance ranges : 6 ranges automatic and manual
  • Voltage ranges : 3 ranges automatic and manual
  • Display update : 5 times / second
