QIACHIP 433 mhz Mini Wireless RF Remote Control 1527 EV1527 Learning code 433mhz Transmitter For Gate garage door Alarm Light controller

QIACHIP 433 mhz Mini Wireless RF Remote Control 1527 EV1527 Learning code 433mhz Transmitter For Gate garage door Alarm Light controller

Regular price ₹ 179.00
Regular price ₹ 190.00 Sale price ₹ 179.00
Sold Out
Tax included. Shipping calculated at checkout.
Description It's a QIACHIP 433 mhz Mini Wireless RF Remote Control 1527 EV1527 Learning code 433mhz Transmitter For Gate garage door Alarm Light controller. Specification  Model: TX118SA-4 Transmitting power: 11dbm Distance: 30-100m Emission...
25 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3971
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: RF Modules
View full product details

Description

It's a QIACHIP 433 mhz Mini Wireless RF Remote Control 1527 EV1527 Learning code 433mhz Transmitter For Gate garage door Alarm Light controller.

Specification

  • Model: TX118SA-4
  • Transmitting power: 11dbm
  • Distance: 30-100m
  • Emission current: 10MA
  • Rate of fire: maximum 10KB / S
  • Transmit deviation: +/- 7. 5KHZ / narrow-band emission
  • Modulation: ASK
  • Operating Voltage: DC 3V-24V
  • Encoding : EV1527 1527 Learning code
  • Each module has a unique ID address code.
  • All modules K1-K4 four key code is the same.

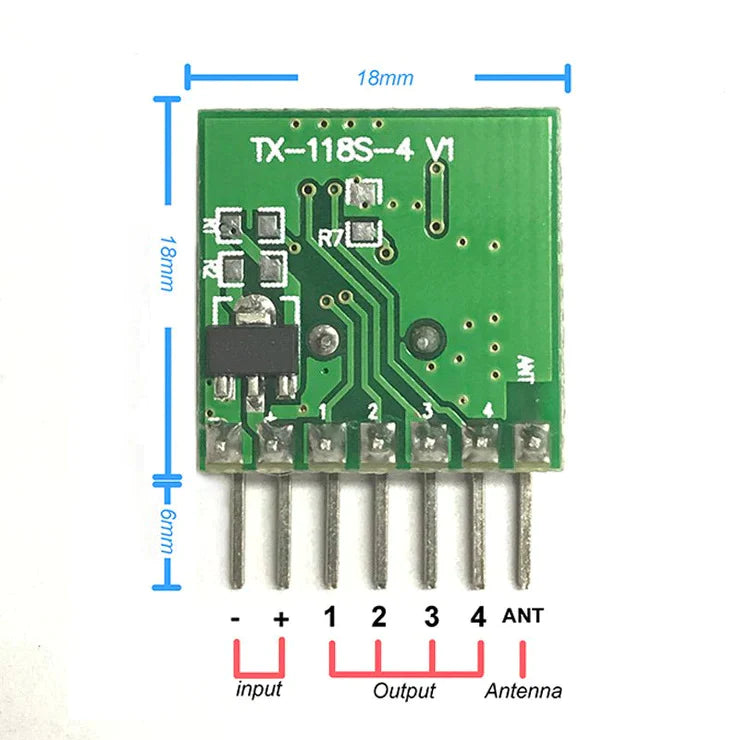

Pin Description:

- : Negative power supply

+: Positive power supply, DC 3-24V

Pin Description:

- : Negative power supply

+: Positive power supply, DC 3-24V

K1: 1 short to  Negative  start transmitting data, Similar the A button on the remote control.

K2:  2 short to  Negative  start transmitting data, Similar the B  button on the remote control.

K3:  3 short to  Negative  start transmitting data, Similar the C  button on the remote control.

K4:  4 short to  Negative  start transmitting data, Similar the D  button on the remote control.

ANT: transmitting antenna
